2754-HPX

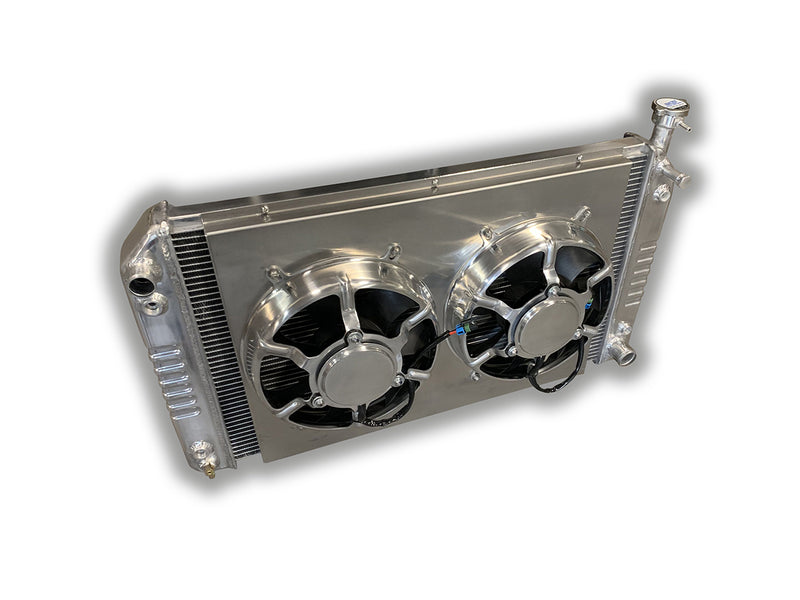

ECP Aluminum Radiator (40" Width) - 88-98 GM Truck / SUV

All new aluminum radiator for 1988-1998 Chevy trucks that use the 34" wide core radiator (40" overall width) with an overall height of 19".

Add the optional dual cooling fan wiring harness for a simple installation. RH-02 includes relays, fuses, 187F temp switch and 10ga wire.

This WILL NOT fit trucks that require a 34" overall width radiator.

  • Overall dimensions: 40" wide x 19" tall.
  • Core dimensions: 34" wide x 17-1/4" tall.
  • All aluminum construction with a heavy duty 2-row core with 1.0" tubes.
  • Upper hose connection is 1-1/2", lower is 1-3/4".
  • Die formed tanks: vintage style with modern, high efficiency cooling.
  • Billet CNC machined filler neck with a new cap.
  • Billet heater return port with plug.
  • Heavy duty, stacked-plate transmission cooler.
  • Fully TIG welded construction with no epoxy.
  • Aluminum shroud with dual, aluminum-body 11" HPX fans rated at 1600 CFM each.
  • Completely assembled and ready to drop into your truck.
  • 2 Year Warranty
The radiators are not polished and have a natural finish. For photos, the radiators have been removed from the packaging and cleaned with an aluminum cleaner and a fine scuff pad.
