BellTech 2/4 Coilover Handling Kit - 07-13 GM Truck (All Cabs)

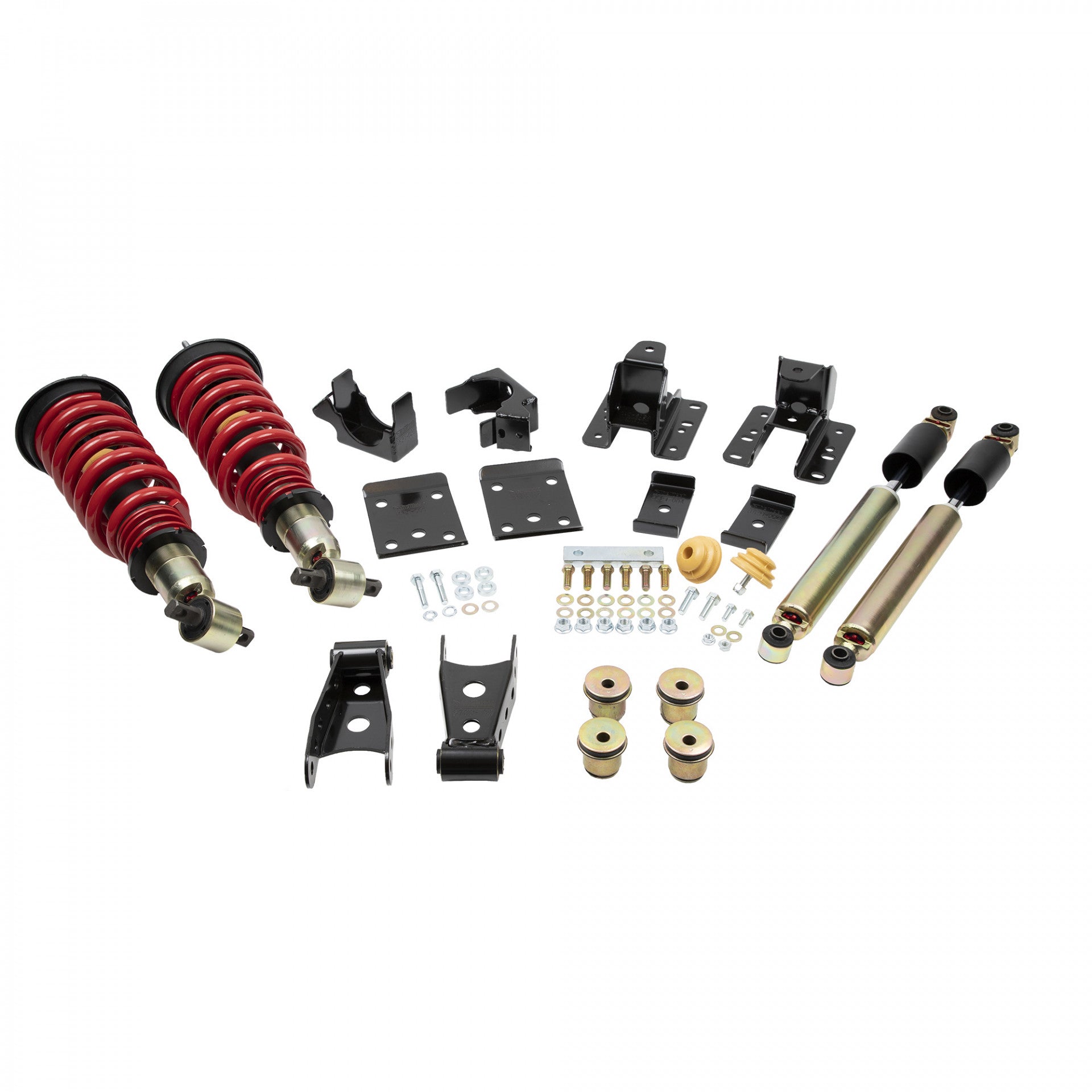

Combining our newly released independent damping adjustable front coilovers and supporting rear shocks with our time-tested lowering components equal the optimum in sporttruck handling all in one convenient package. Kits will contain (depending on application), a combination of height adjustable coilovers, shock absorbers, sway bars and lowering components to give you a vast improvement over oem in overall performance and handling all while still retaining that comfortable ride quality.

Fits: 2007-2013 Silverado/Sierra 1500 (All Cabs) Short Bed 2WD / 4WD

Advanced performance, improved handling, and style are just a few of the upgrades you gain when swapping your OE suspension for Belltech's 2007-2013 GM Silverado/Sierra 1500 Performance Handling Lowering Kit. With a front height adjustment of -1" to -3" and the rear -4", you improve the appearance and achieve the superior ride quality you have been dreaming of.

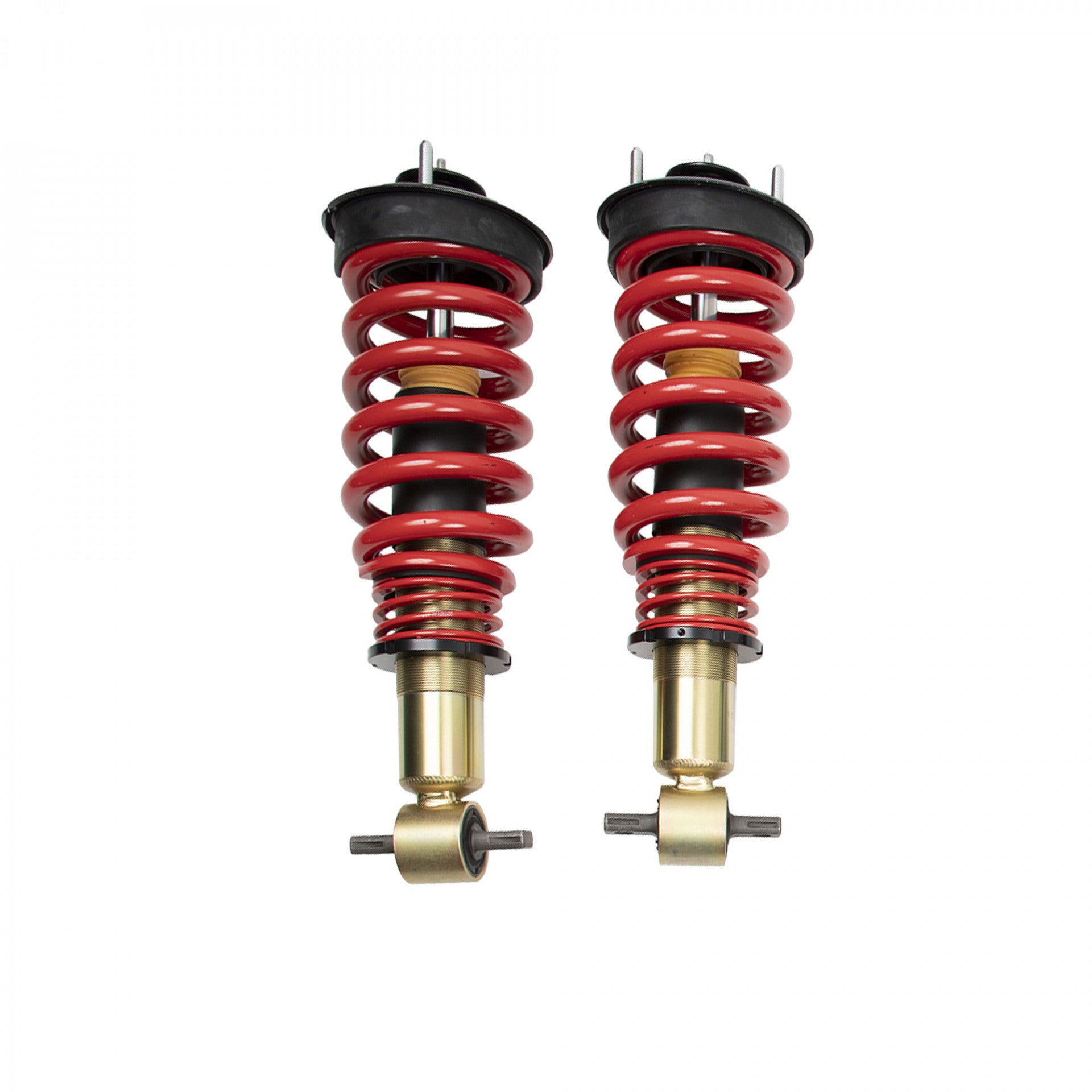

The front suspension includes our robust Belltech lowering adjustable damping coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper with independently adjustable rebound and compression damping forces. The dampers feature a large, 2.4" (60mm) gold zinc galvanized damper housing for added longevity. The external threads and spring perch offer height adjustability from -1" to -3". We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement. We include OEM style top mounts for a quick "ready to install" solution.

The rear end of the vehicle showcases Belltech Street Performance adjustable damping shocks that are perfectly tuned for increased, customizable refinement of your GM trucks's ride quality. Belltech Street Performance adjustable shocks feature an advanced low-friction design and are effortlessly tuned with easy-to-set rebound and compression knobs. The rebound adjustment features 18 precise clicks of rebound stage tuning, while the compression showcases 12 clicks of compression stage tuning. With independent adjustments, you can directly influence steering behavior, directional stability, grip, and handling characteristics, producing an individualized and perfected ride. Like the coilover dampers, our shocks are made with a 2" (55mm) gold zinc galvanized damper housing to increase their lifespans.

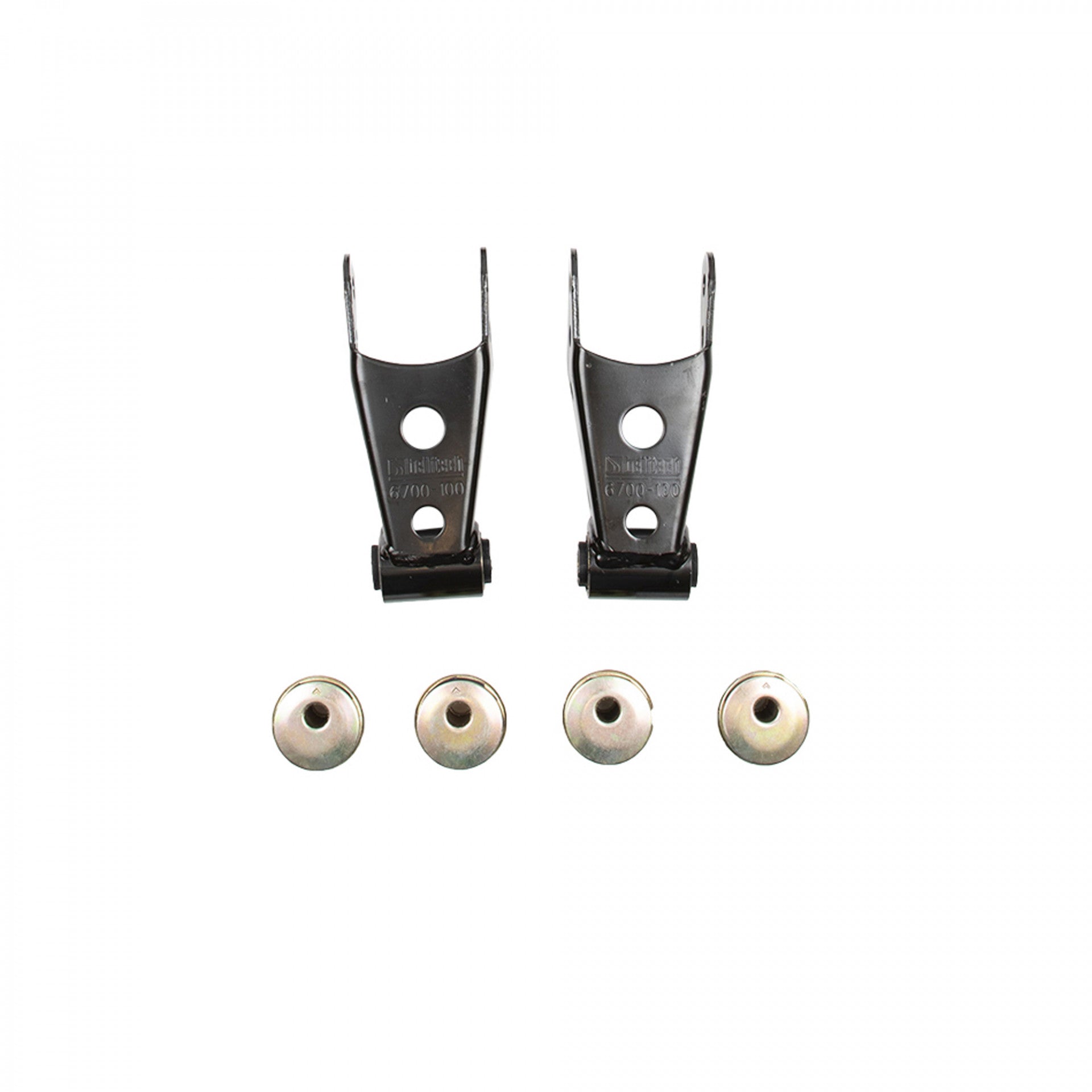

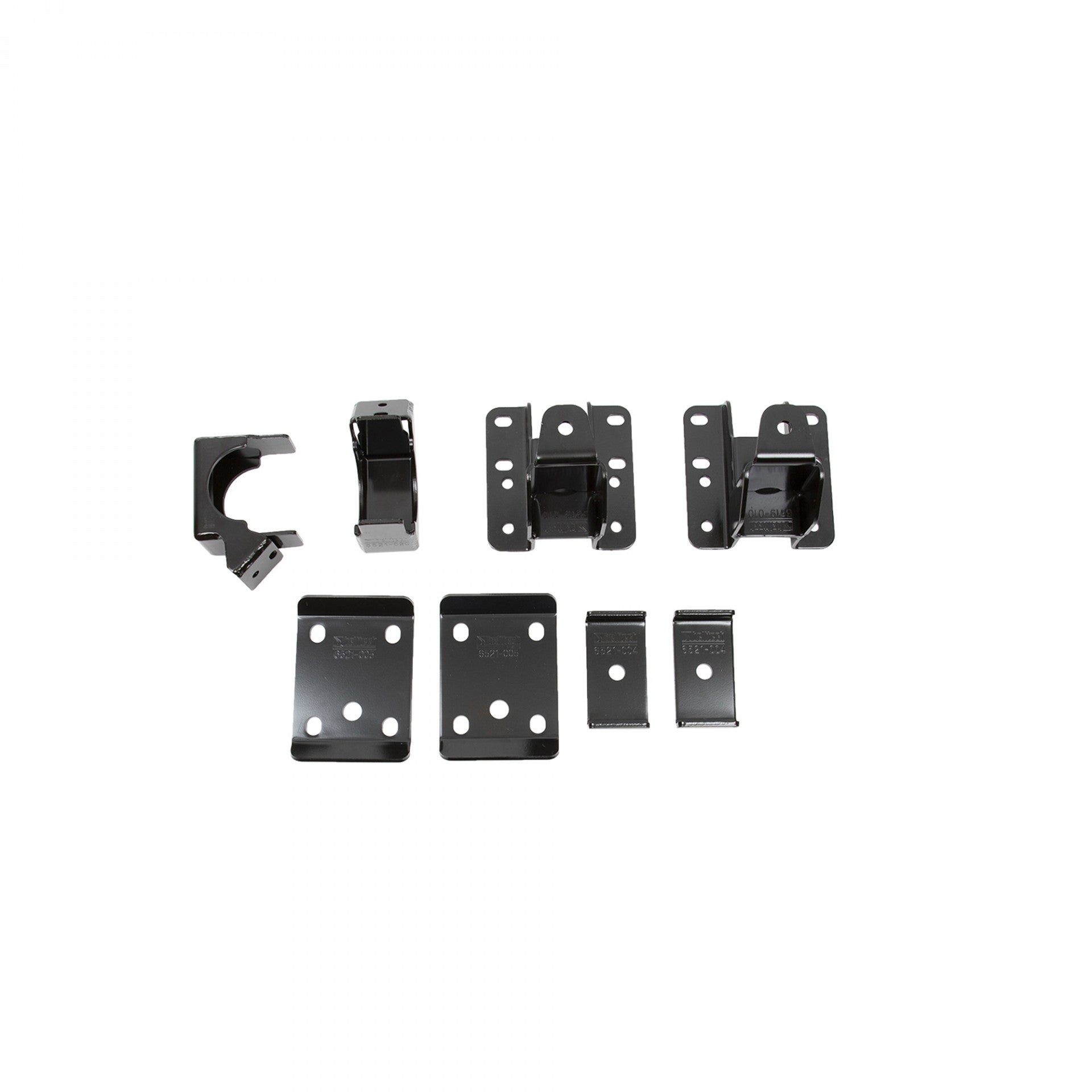

To achieve -4" in lowering, Belltech includes an easy-to-install flip kit and shackle. The flip kit contains high-quality hardware and durable finished components. It seamlessly repositions your axle without interfering with any OE parts. No cutting required, a true simple bolt-on system.

Give your GM truck an eye-catching, high-performance upgrade with the Belltech 2007-2013 GM Silverado/Sierra 1500 Performance Handling Lowering Kit.

  • Lowering range: -1" to -3" front and -4" rear
  • Complete "ready to install" front height adjustable coilovers
  • 18 clicks of rebound stage adjustment (TVR-A) Twin Valve Rebound Adjustable Technology
  • 12 clicks of compression stage adjustment (TVC-A) Twin Valve Compression Adjustable Technology
  • 35mm independent rebound and compression valves
  • Coilovers contain large 2.4" (60mm) Street Performance dampers
  • Rear Street Performance 2" (50mm) shocks
  • High-quality bolt-on flip kit with Shackle
  • Front end alignment kit
  • Enhanced performance and handling
  • Reduced body roll
  • Improved ride quality
  • Lowers center of gravity
  • Easy installation
  • Precision designed and engineered in the USA



Front Lowering: 1.0" to 3.0"
Rear Lowering: 4.0"
