Combining our newly released height adjustable front coilovers with our time-tested lowering components equal the optimum in sporttruck handling all in one convenient package. Kits will contain (depending on application), a combination of height adjustable coilovers, shock absorbers, sway bars and lowering components to give you a vast improvement over oem in overall performance and handling all while still retaining that comfortable ride quality.

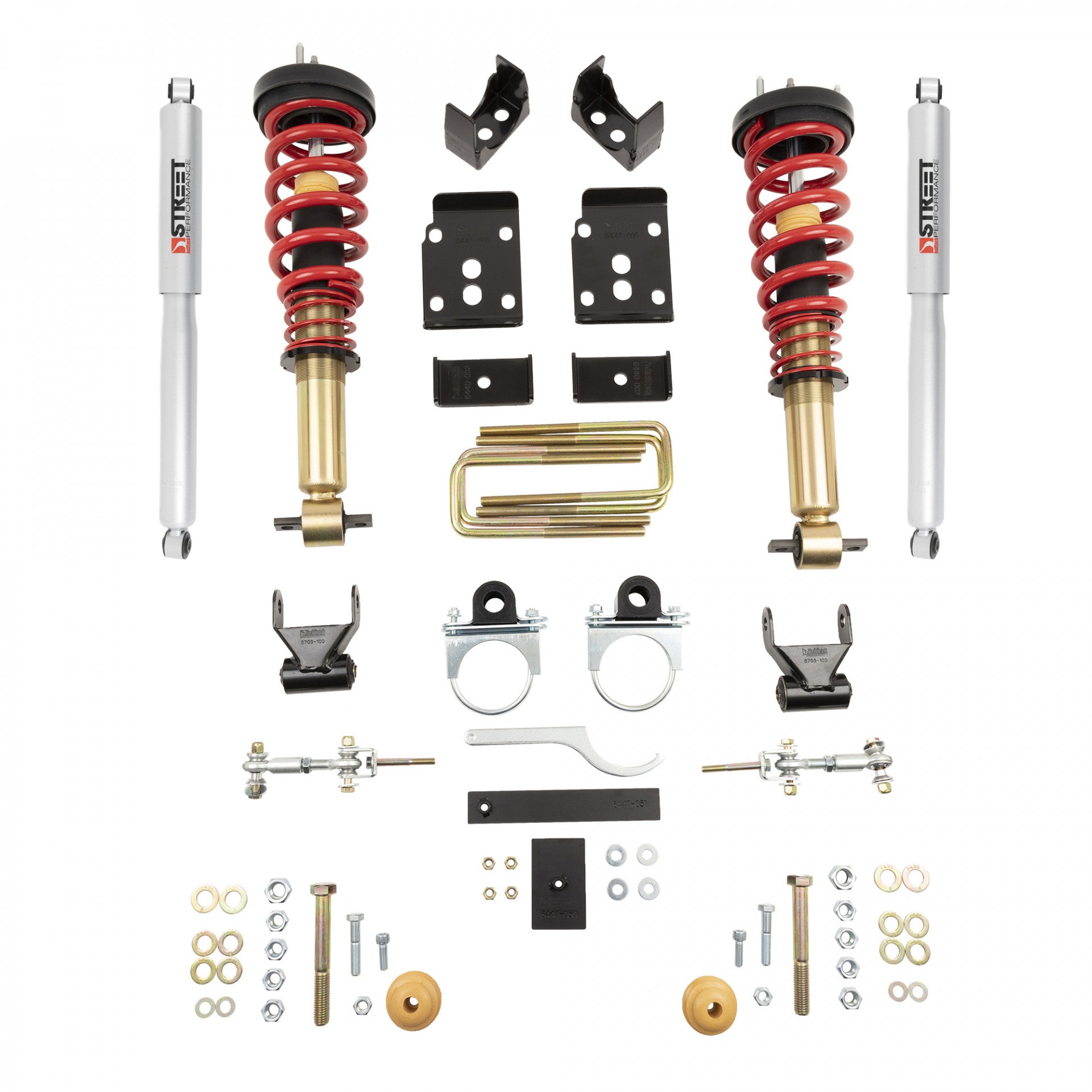

Part Number: 1000SPCFits: 15-20 Ford F-150 2WD / 4WD-1" to -3" F and -5.5" R LoweringOutstanding performance, improved handling, and enhanced style are just a few of the upgrades you gain when swapping your OE suspension for Belltech's 2015-2020 Ford F-150 lowering kit. With a front height adjustment of -1" to -3" and the rear -5.5", you improve the appearance and deliver the ride quality you have been dreaming of.
The front suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech threaded damper. The dampers feature a large, 2.4" (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer height adjustability from -1" to -3". We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and OE style top mounts for simplified installation.

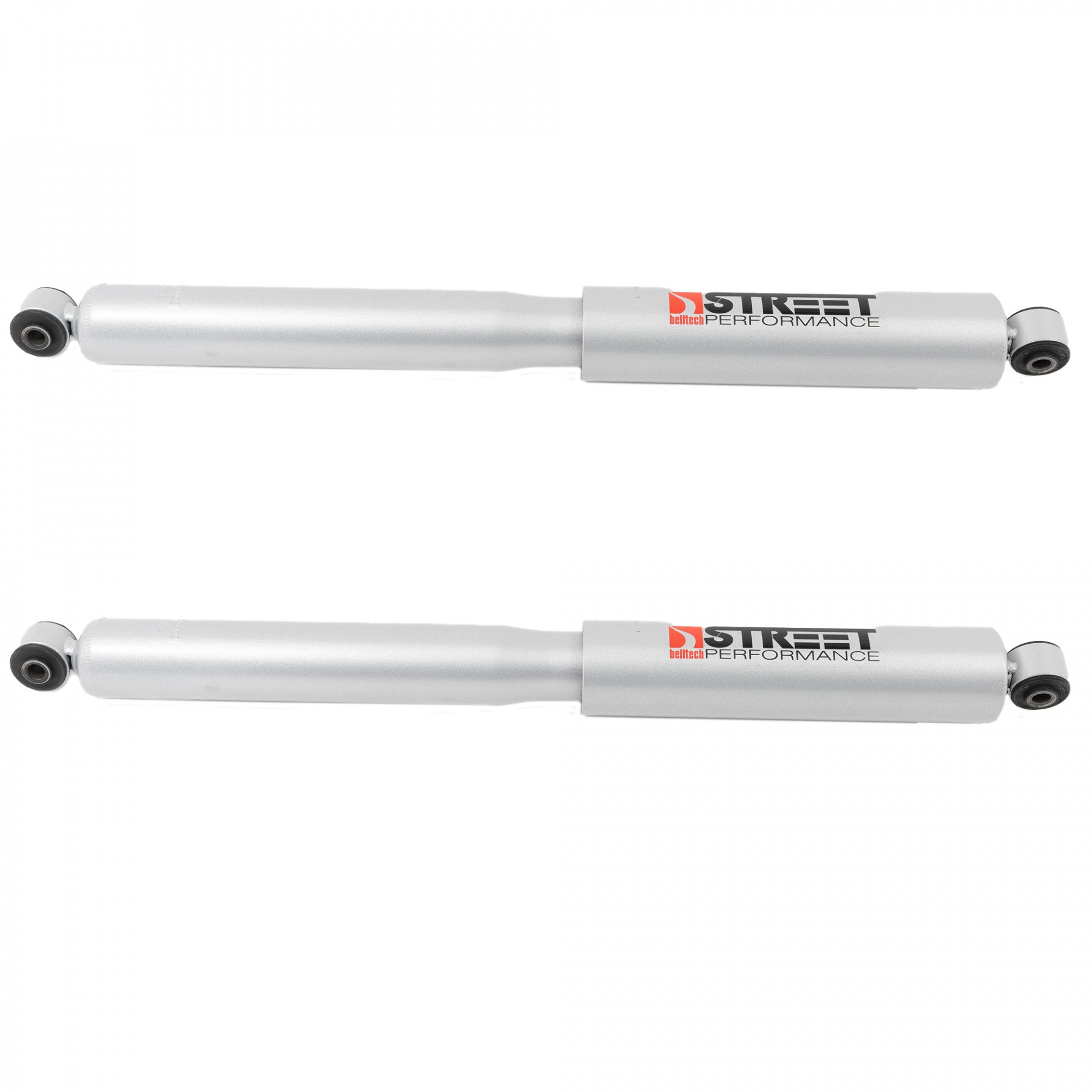

The rear end of the vehicle showcases Belltech Street Performance shocks that are perfectly tuned for your F-150. They feature large 2" (50mm) damper bodies and use 35mm independent rebound and compression valves; the result is exact, luxurious damping. Like the coilover dampers, our shocks are made with a low-friction design and use a rust-preventative coating to increase their lifespans. To achieve -5.5" in lowering, Belltech includes an easy-to-install flip kit. The flip kit contains high-quality hardware and durable finished components. It seamlessly repositions your axle without cutting or interfering with any OE parts.
Give your truck to an eye-catching, high-performance upgrade with the Belltech 2015-2020 Ford F-150 Performance Handling Lowering Kit.
- Lowering range: -1" to -3" front and -5.5" rear
- Complete "ready to install" front height adjustable coilovers
- Vehicle specific factory preset damping
- 35mm independent rebound and compression valves
- Large 2.4" (60mm) Street Performance dampers at the front
- Rear Street Performance 2" (50mm) shocks
- High-quality bolt-on flip kit
- Enhanced performance and handling
- Reduced body roll
- Improved ride quality
- Lowers center of gravity
- Easy installation
.
