14059-OEM1

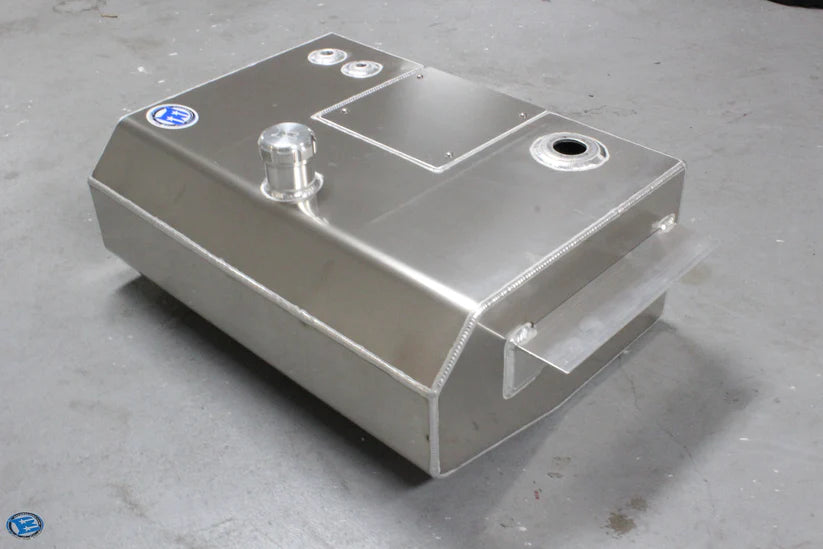

Boyd Aluminum Fuel Tank (For OEM Pump) - 67-72 F100

BUILD TIME: APPROXIMATELY 2-3 WEEKS.

****IF ADAPTING TO A STOCK FRAME, ADDITIONAL NOTCHING TO THE LOWER LEG OF FRAME CROSS MEMBER WILL BE REQUIRED FOR FITMENT.*****

-Tank Dimensions: 26.5 x 19 x 10
- Tank Material: .125 Aluminum
- CNC Machined Non Vented / Threaded Cap. on center
- 1/2" NPT Vent
- 3/8" NPT Return
- 3 Baffles
- Approx 19 Gallons
This tank has a special pocket with adapter that will accept an OEM ACDelco MU2101 In-tank pump assembly.  (NOT INCLUDED) this pump has proven to be very reliable and will run pretty much any LS or Coyote engine.

- It is not possible to use the OEM fuel level sensor that is supplied with the pump module.  since the tank height is different from stock and is custom built into a pocket the sensor float will hit baffling and will not read the fuel level properly.

Note:  This tank will ONLY work with the MU2101 pump assembly.

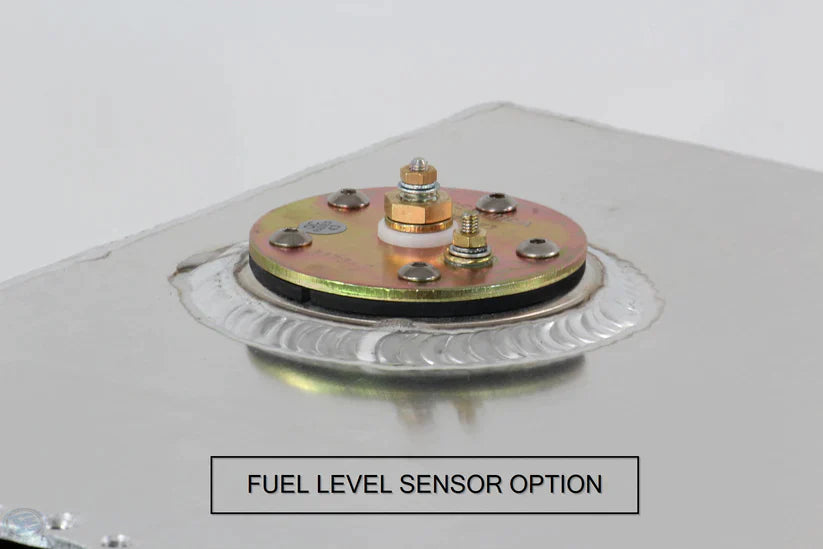

* Pictures show Rollover Safety Vent and Sending Unit Options installed.
