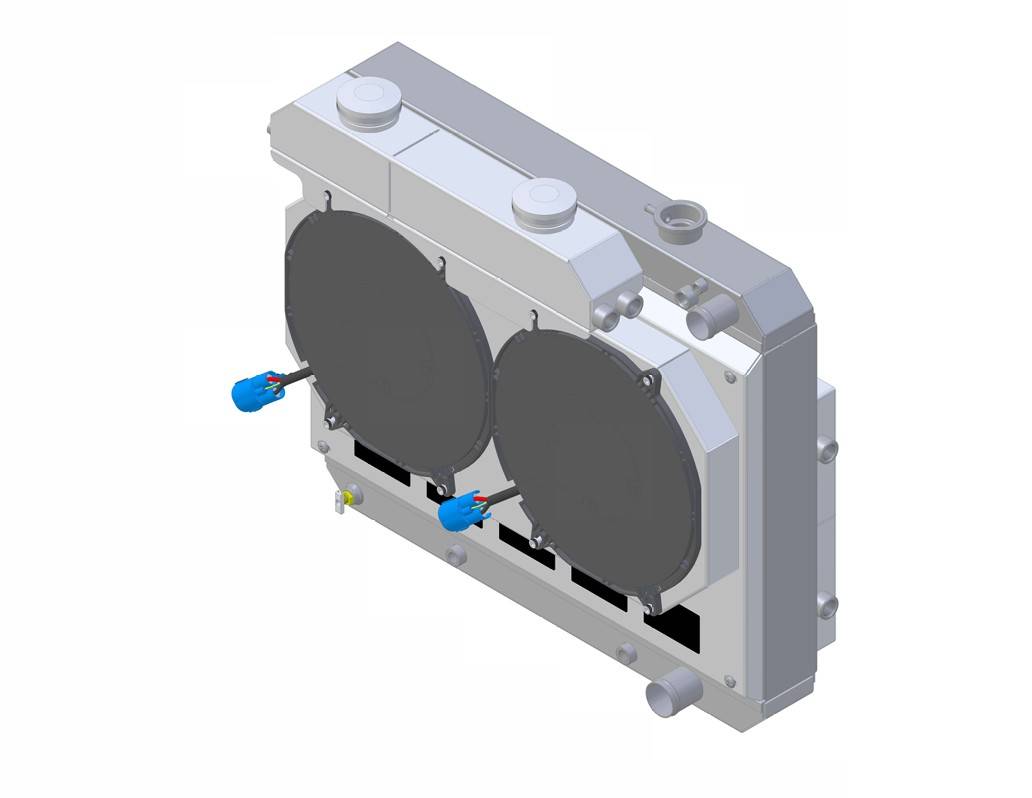

Wizard Cooling Radiator / Fans, LS Swap - 63-66 C10 / 63-66 SUV - Supercharged

3-4 Week Lead Time

• Engine: LS Swap
• Engine: LS Swap (Supercharged)
• Shroud YES/NO: Yes
• Electric Fan YES/NO: Yes
• CRITICAL THICKNESS: 6.50 IN
• THICKNESS OF CORE: 2.75 in (Upgraded High Performance Core)
• TRANSMISSION OIL COOLER INCLUDED: Yes
• Core Thickness: 2.75 in (Upgraded High Performance Core)
• Electric Fan Type: Brushless
• Shroud: Yes
• MOUNTED AC CONDENSER: No
• INLET LOCATION: Passenger Side
• OUTLET LOCATION: Passenger Side
• Expansion Tank Included: No
• INLET DIAMETER: 1.375 IN
• CORE MATERIAL: Aluminum
• TUBE INSIDE DIAMETER: 1.25 IN
• TRANSMISSION OIL COOLER TYPE: Plate
• TRANSMISSION OIL COOLER PLATE QUANTITY: 5
• CORE ROW QUANTITY: 2
• CORE WIDTH: 25.625 IN
• TANK MATERIAL: Aluminum
• DOWN FLOW OR CROSS FLOW TYPE: Down Flow
• Electric Fans: Yes
• ENGINE OIL COOLER INCLUDED: No
• OUTLET HEADER WIDTH: 3 IN
• OUTLET HEADER LENGTH: 25.625 IN
• OUTLET DIAMETER: 1.625 IN
• MOUNTING TYPE: Saddle
• FAN DIAMETER: 12
• INLET HEADER WIDTH: 3 IN
• INLET HEADER LENGTH: 25.625 IN
• CORE HEIGHT: 17.75 IN
• FINISH: Aluminum
• SHROUD TYPE: Shroud
• PACKAGE: Radiator & Fan Package
• Availability Remarks:
