DB1550B

Master Power Front Disc Brake Conversion - 65-67 F100

A cost effective option with a twist. - The Legend Series has been a staple of Master Power Brakes since its inception. The Legend Series Version 2.0 takes that classic offering one step further. It is still a complete brake system designed to upgrade your drum brakes to the reliability and performance of disc brakes. There are times however that a conventional rotor just will not cut it. The Version 2.0 uses a two-piece rotor that consists of a billet aluminum hub with a directionally vented rotor which allows us to adjust things such as track width that might not have been available otherwise. Installation is still a weekend project that will pay dividends for many years to come.

Fitment Notes:
A minimum of a 15" wheel is required. Not all stock steel 15" wheels will work. Use the template to verify wheel fitment. Rotors have both a 5 x 5-1/2" pattern (studs installed) and a 5 x 4-1/2" pattern. Designed to work on OE drum brake spindles.

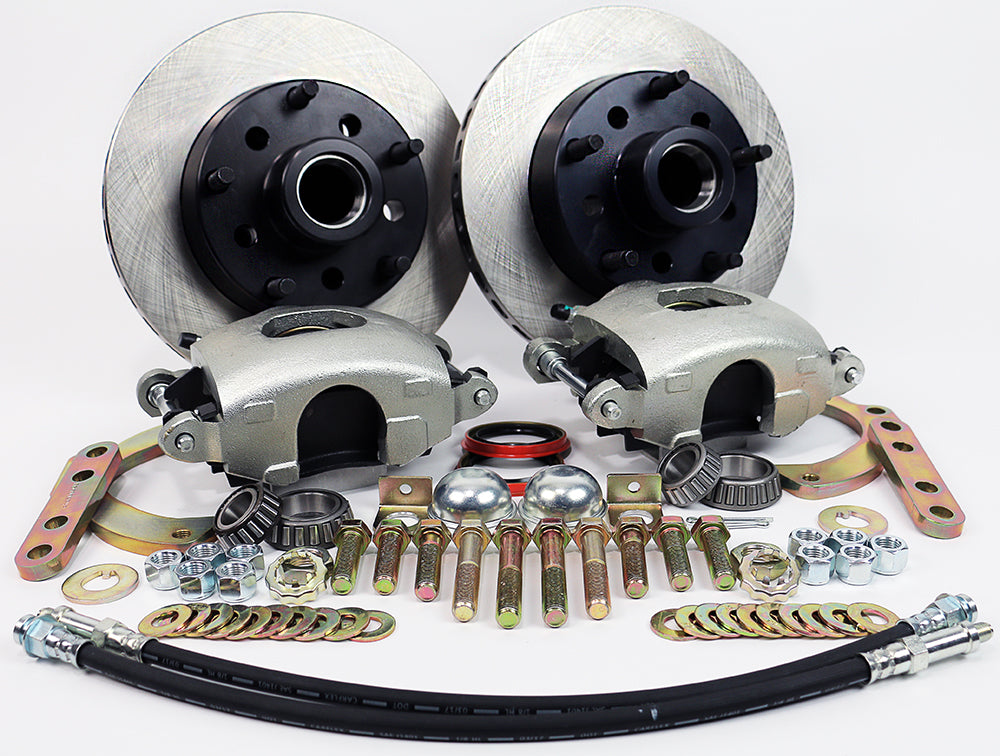

When choosing the Front Wheel System, you will receive the following items:

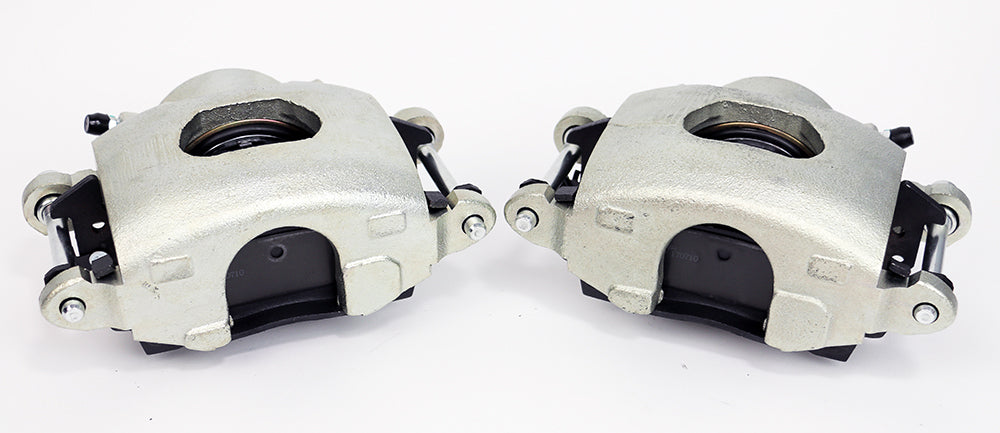

  • Single Piston D52 OE Calipers - Silver zinc finish w/stainless steel pistons

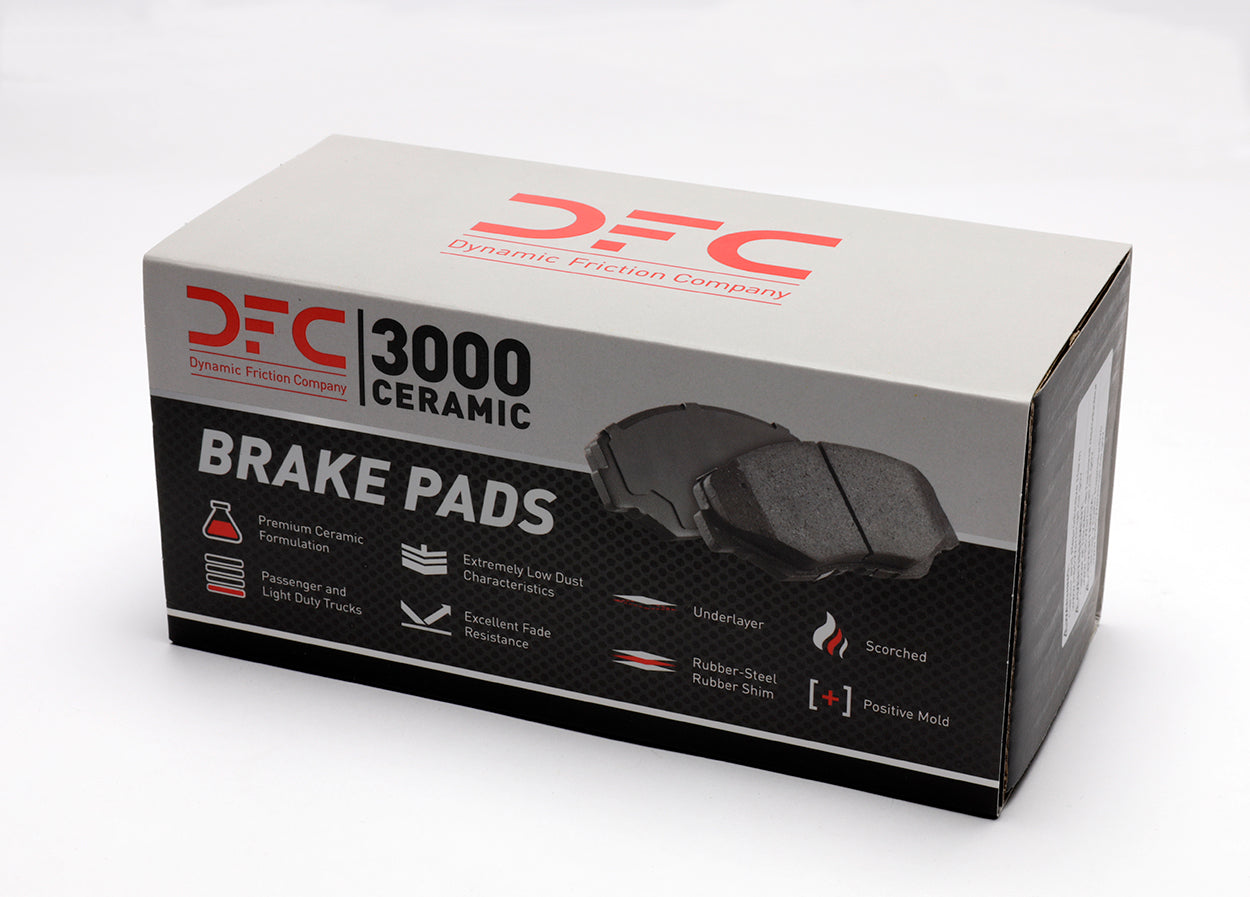

  • High Quality Semi-Metallic Brake Pads

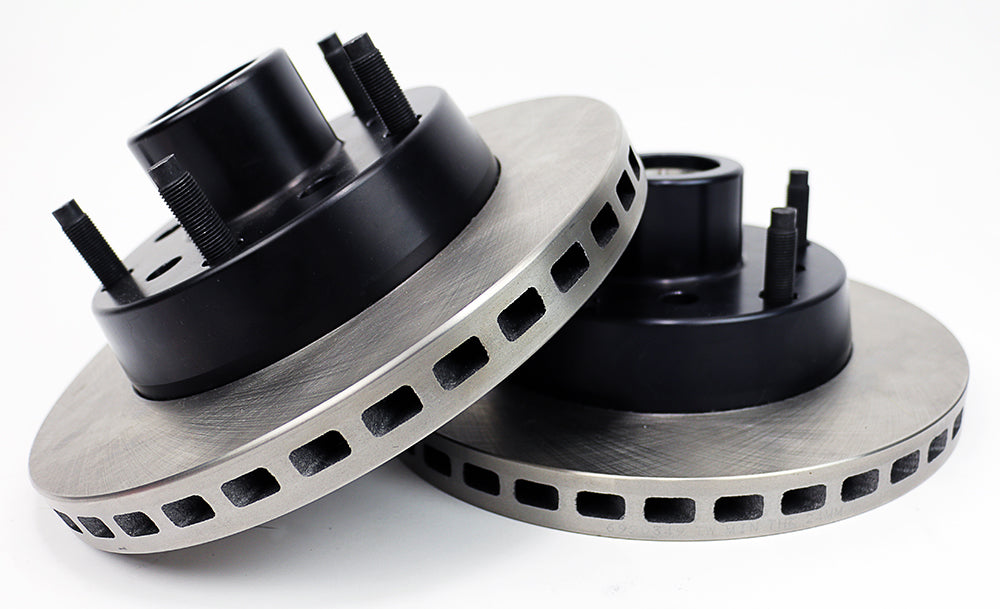

  • 11-1/8 inch Directionally Vented 2-piece Rotors with Aluminum Hubs
  • Laser Cut and Zinc Plated Steel Primary Caliper Mounting Bracket
  • Laser Cut and Zinc Plated Steel Secondary Caliper Mounting Bracket
  • Wheel Bearings and Grease Seals
  • Grade 8 Hardware
  • Spindle Nuts & Washers
  • Dust Caps
  • Rubber Brake Hoses

    Downloads:
    Installation Instructions
    Wheel Fitment Template
    Template Instructions

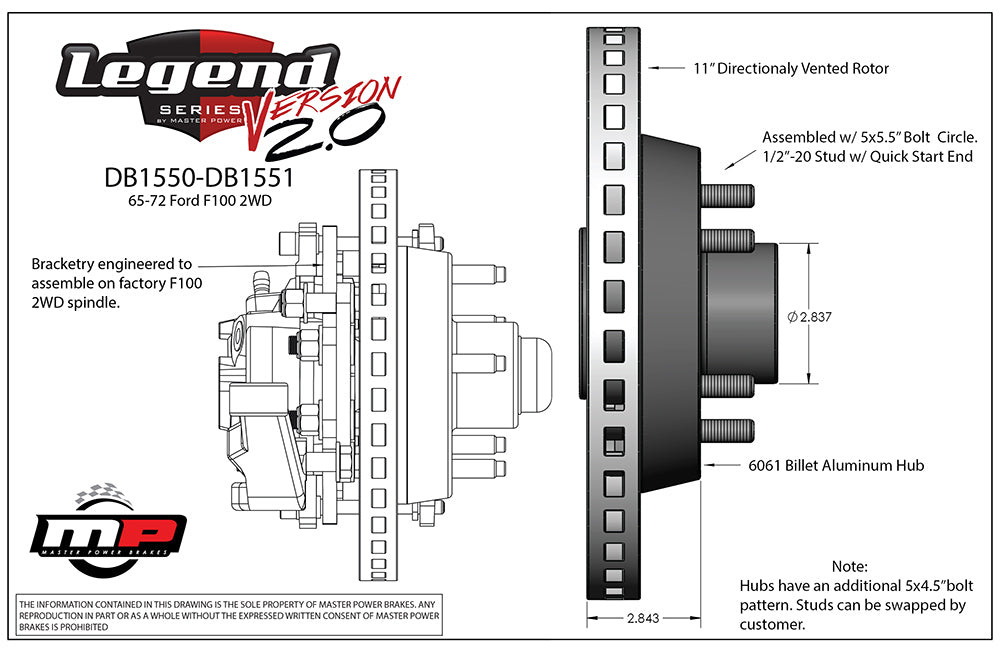

    F100 Rotor Graphic
