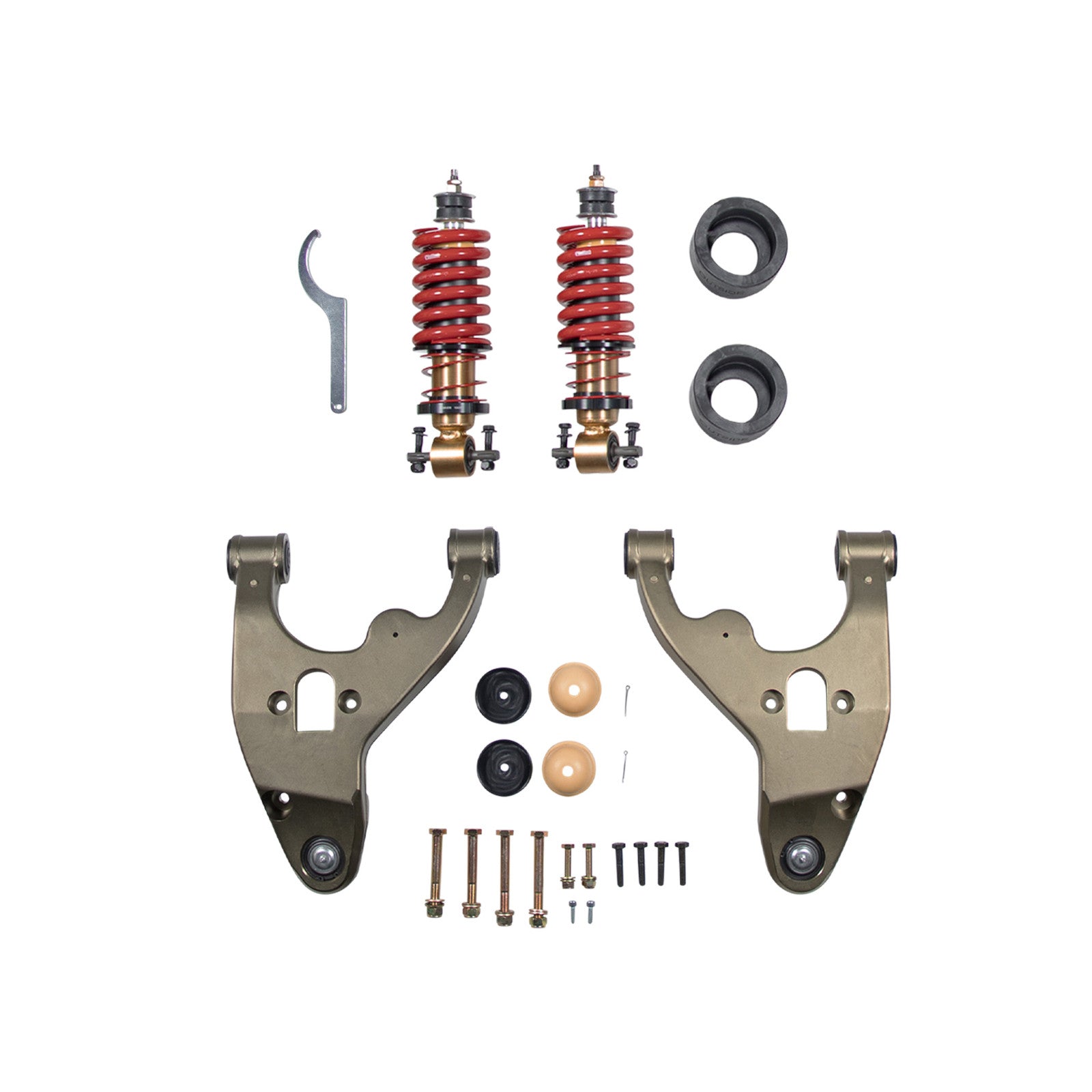

BellTech Front Lower Control Arm Coilover Kit - 88-98 C1500 / 92-99 SUV

Dial in the perfect stance and control with Belltech’s complete front height-adjustable coilover system for the 1988–1998 Chevrolet C1500. Modern performance with bolt-on simplicity featuring forged aluminum lower control arms with integrated bump stops, this system improves strength, suspension travel, and ride control while allowing precise ride-height tuning. The result is a cleaner stance, sharper handling, and confident street performance—built for the way you drive your OBS.

Front Features

• Forged Aluminum Lower Control Arm + Matched Coilover Assembly
• Matched coilover and lower control arm for optimized performance
• Integrated microcellular foam bump stops for refined compression control
• Height-Adjustable Coilovers
• 2” (50mm) of fine-tuned adjustability; set ride height from -1.5” to -3.5”
• Composite upper spring adapter ensures proper spring alignment
• Sport-enhanced 300 N/mm spring rate sharpens steering response

Important: Belltech Control Arms are designed and tested with approved suspension configurations. When used with non-Belltech suspension systems, compatibility must be verified by the installer. Damage resulting from excessive suspension travel, over-articulation, or improper installation is not covered under warranty.

Installation Instructions

 Front Lower Control Arm and Coilover Kit
