Little Shop 5-Lug 14" F/R Big Brake Kit - 88-98 2wd GM Truck / SUV

LSM-14-88-5-Kit

Little Shop 5-Lug 14" F/R Big Brake Kit - 88-98 2wd GM Truck / SUV

$4,240.00

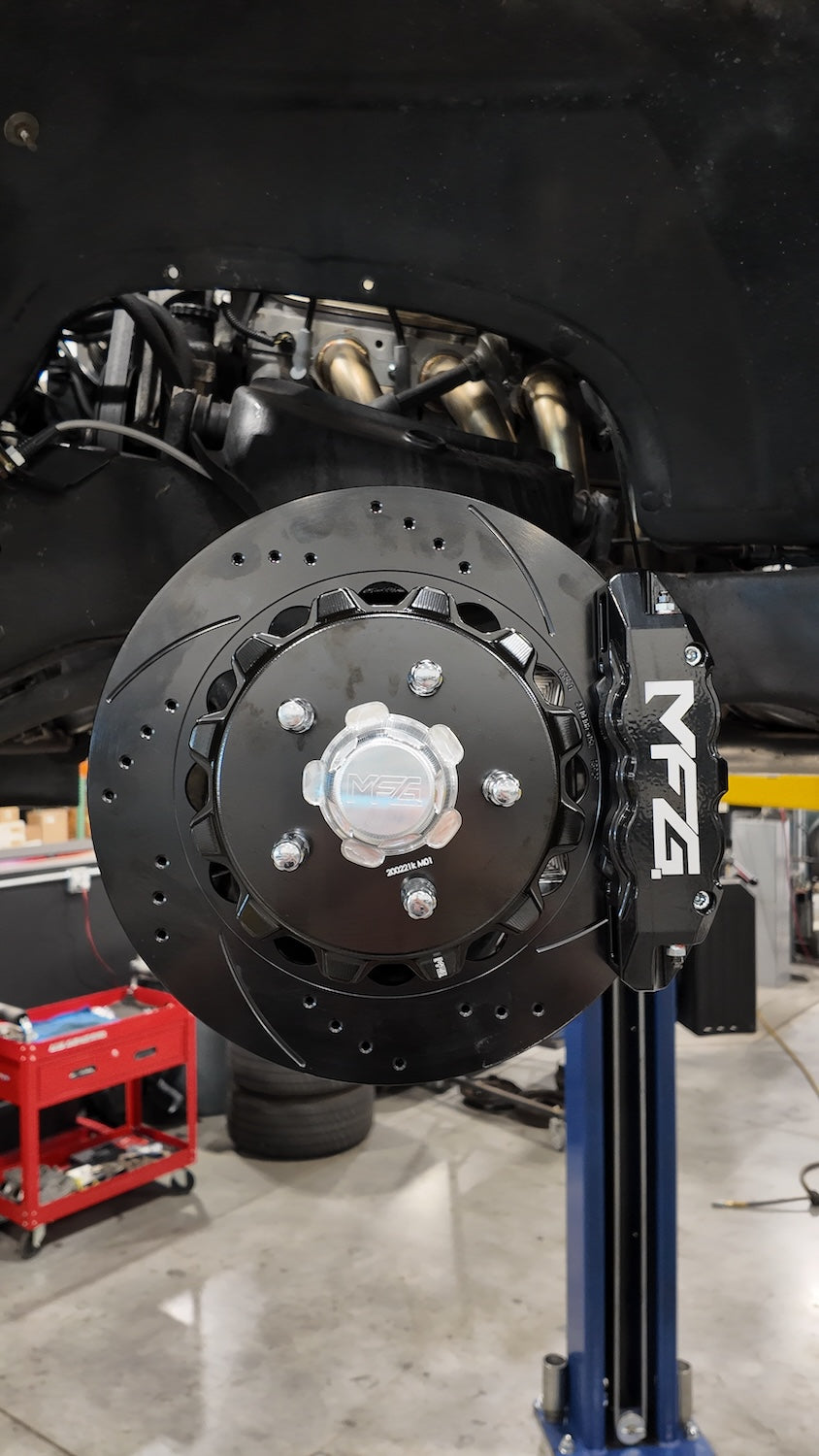

A 14" C1500 kit utilizing Wilwood 6-piston FNSL calipers, aluminum hubs, hats, and machined 6061 AL brackets which bolt directly to the factory spindles or drop spindles without drilling. Designed to fit 88-00 fullsize 2wd GM trucks and SUVs.

Note: Fits spindles with factory 1.25" rotor width. Non-heavy duty spindles from 88-91 Standard Cabs with a 1" rotor width must be swapped to 88-91 Ext Cab, 88-91 454SS, or any spindle from 92-00. The same applies to drop spindles for those year ranges.

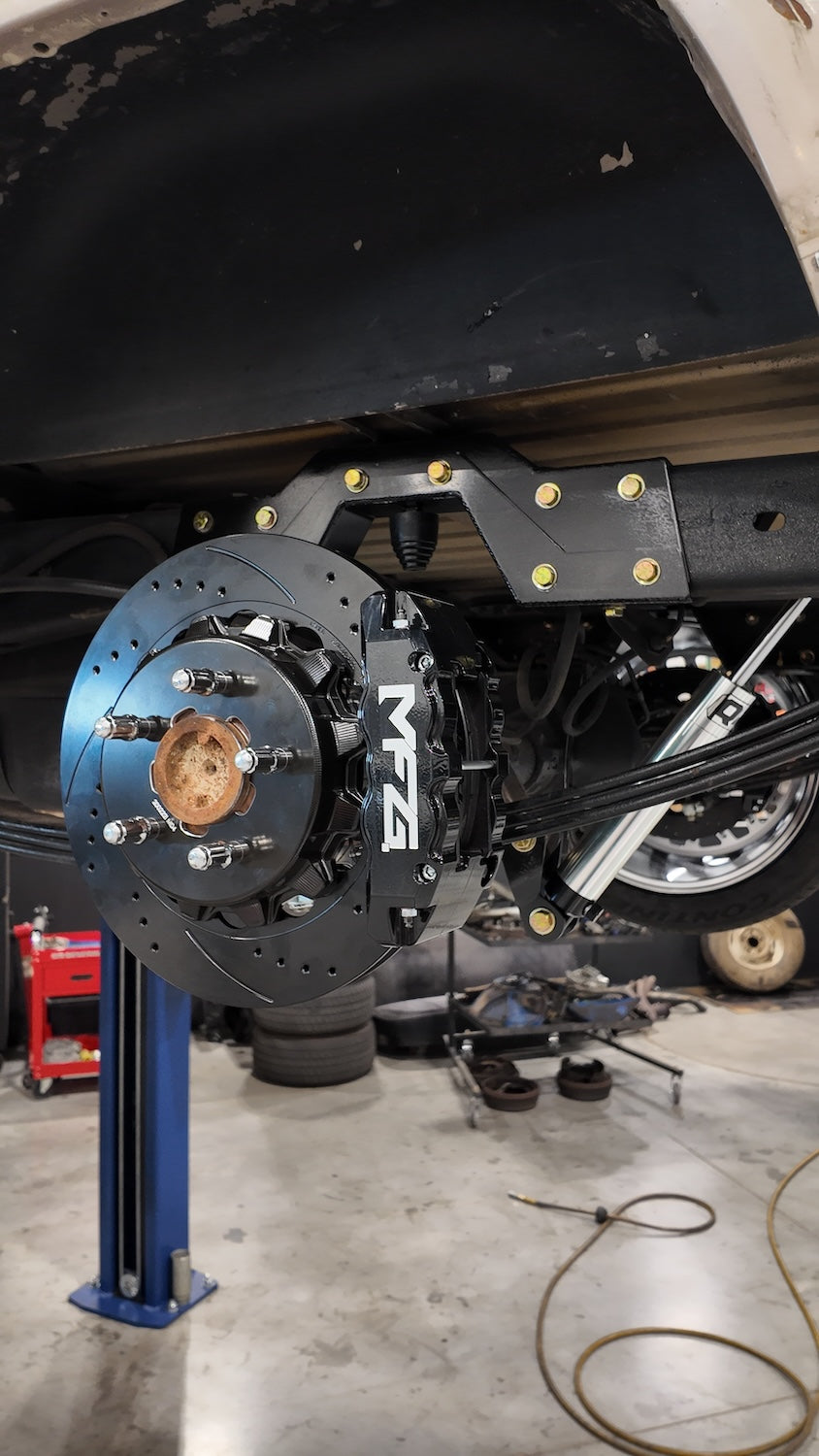

A 14" C1500 kit utilizing Wilwood FNSL 4-piston calipers, aluminum hats, machined 6061 AL radial brackets, and laser cut brackets to bolt up to the factory axle without modification. Designed fit 88-00 fullsize 2wd GM trucks and SUVs. Matches the 14" front kit.

Note:

Make sure to verify your housing axle flange pattern, for the 10" or 11" drum. See links below for measurement, in order to properly order this kit to fit.
Brake line adapter needed if installing on factory rear end hardline. Not needed if you want to supply your own fittings or doing something custom.

10" Drum Housing Axle Flange Measurement
11" Drum Housing Axle Flange Measurement

(Rear calipers are the same body and look as the fronts, but with a smaller bore size for proper front/rear bias)
