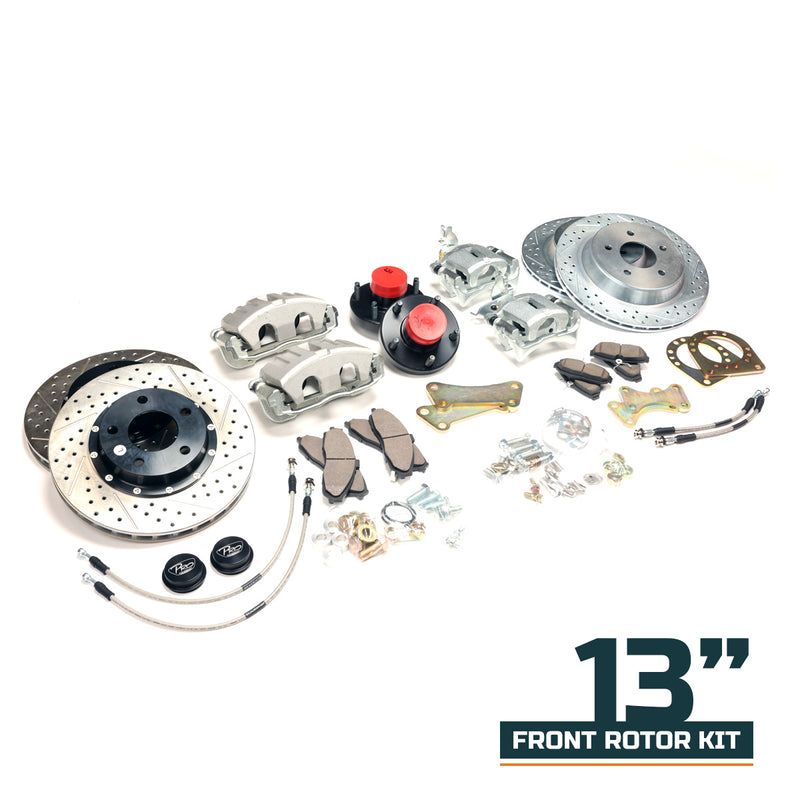

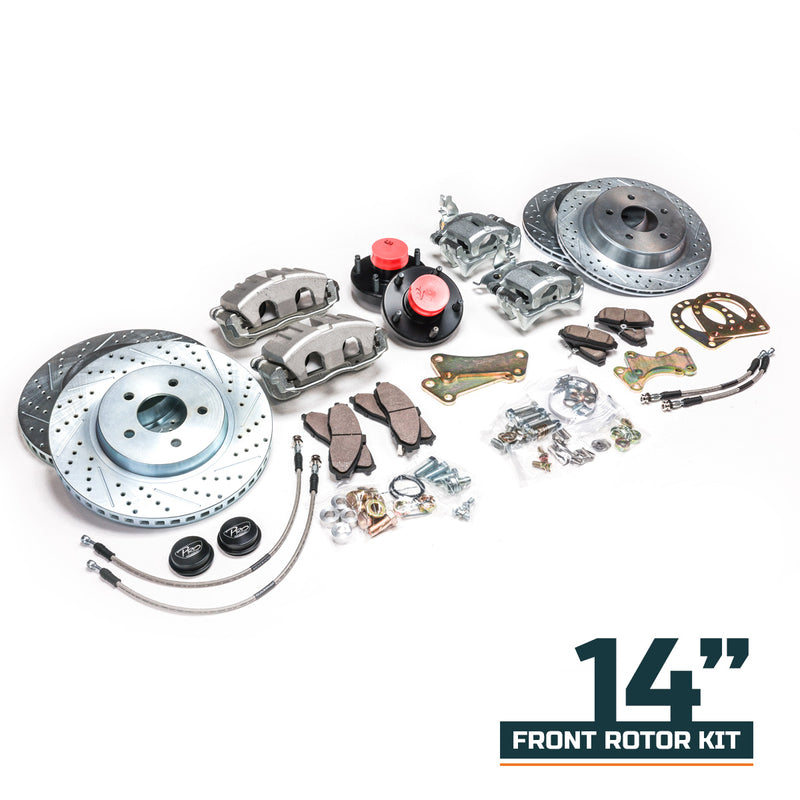

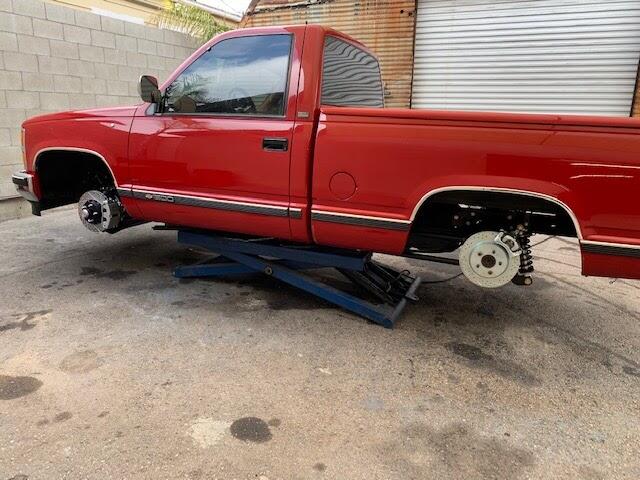

Pro Performance F/R Big Brake Kit - 88-98 GM 2WD Truck / SUV

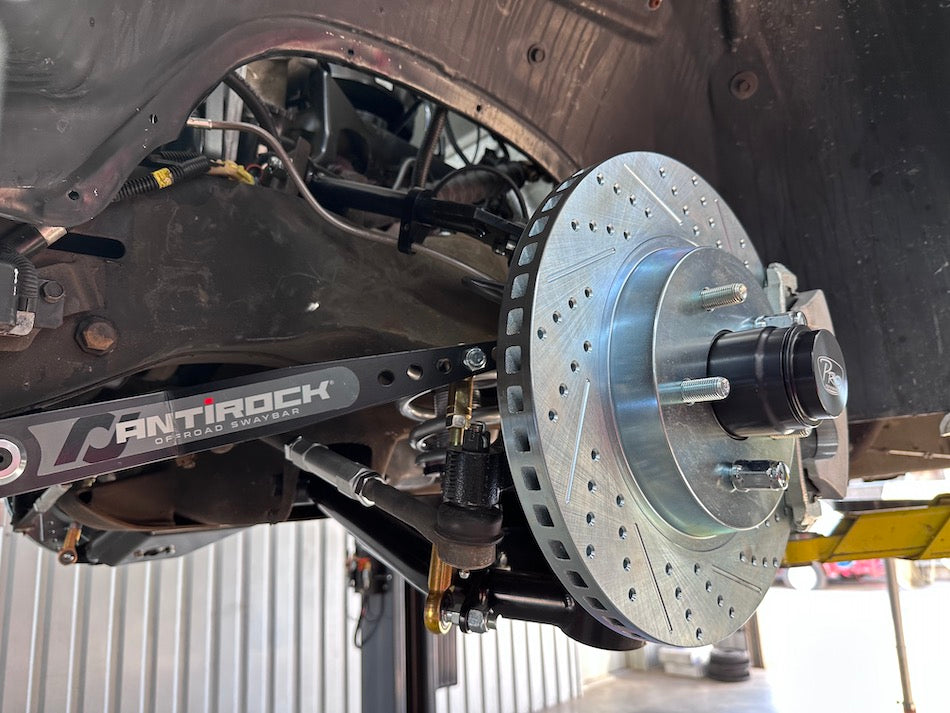

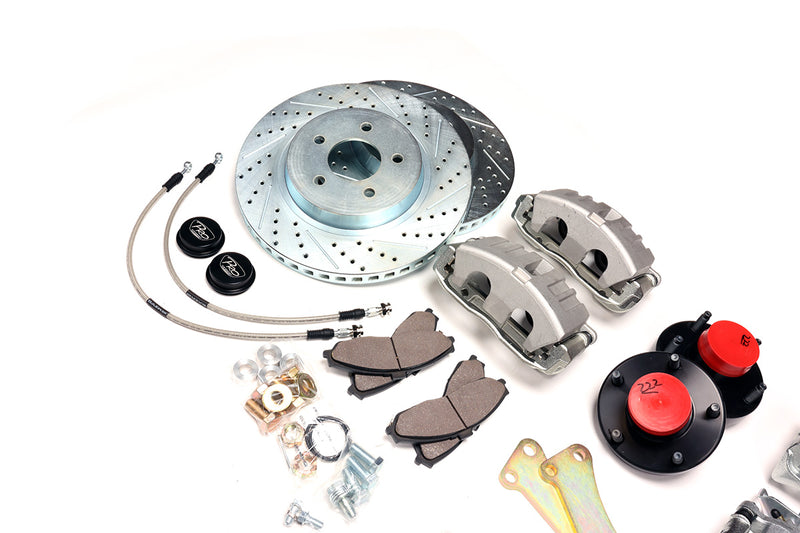

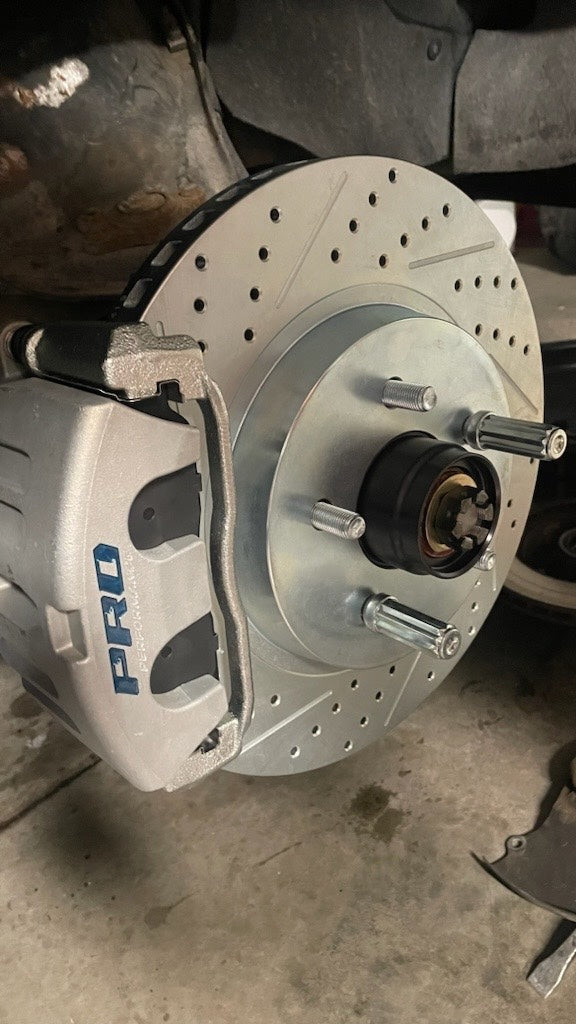

FRONT KIT: This brake kit will work with any HD brake spindle, such as McGaughys, Street Edge, BellTech, and even stock, etc. With easy installation, this kit will drastically improve over stock braking and saw a 160 ft. improvement 90-0 and 53 ft. improvement 60-0. Works only on HD rotor spindles and do need to be modified to install the kit. Or add the NEW React spindles for a true bolt-on installation.
Note: This kit has minimal caliper, see templates below for details. Spindle not included.
Requires user modification on stock or stock style spindle with caliper "ears". No modifications needed on spindle when adding the NEW React modular 2" drop spindle.
Hub uses 14x1.5mm studs.
Must have HD spindle, and will NOT work on light duty brake spindle.
Widens track width by 5/16" per side (except when using with React spindle).
1) No need to buy new spindles, just modify current spindles
2) Uses new calipers, not rebuilt
3) Precise machined hub
4) Laser cut mounting bracket

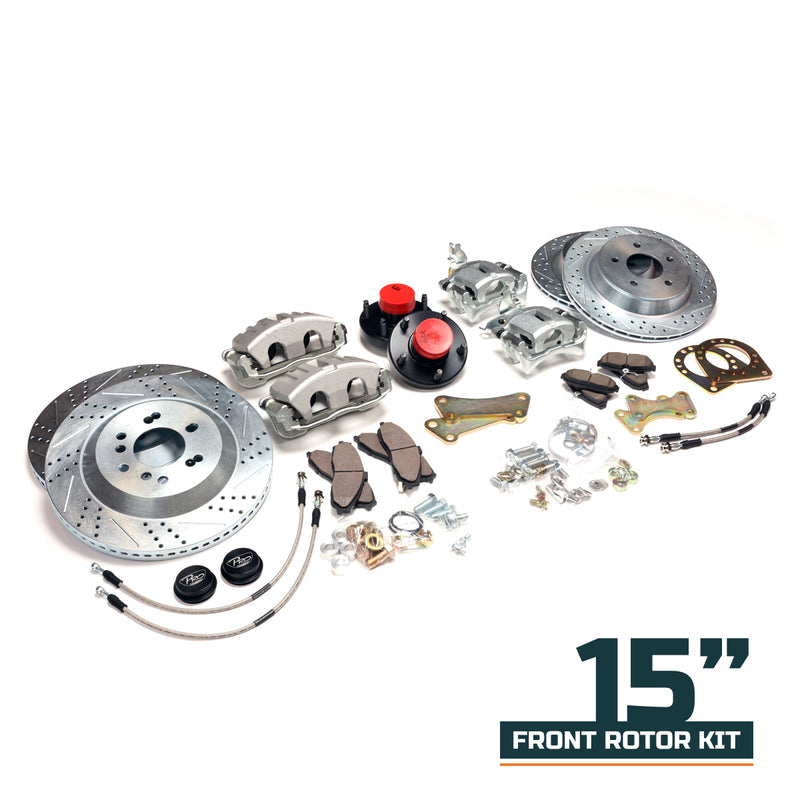

5) Diameter of wheel required, depends on rotor size selected.
6) Will work with most aftermarket wheels, since caliper offset is kept to a minimum.

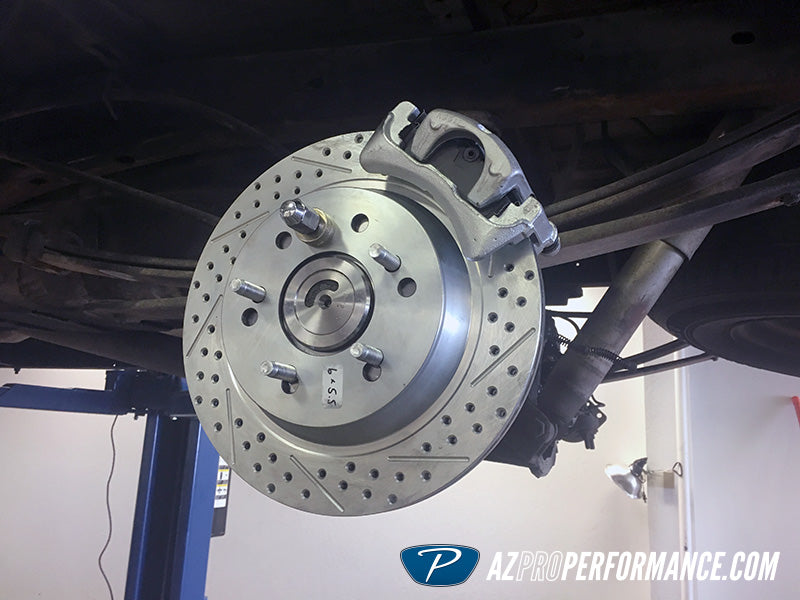

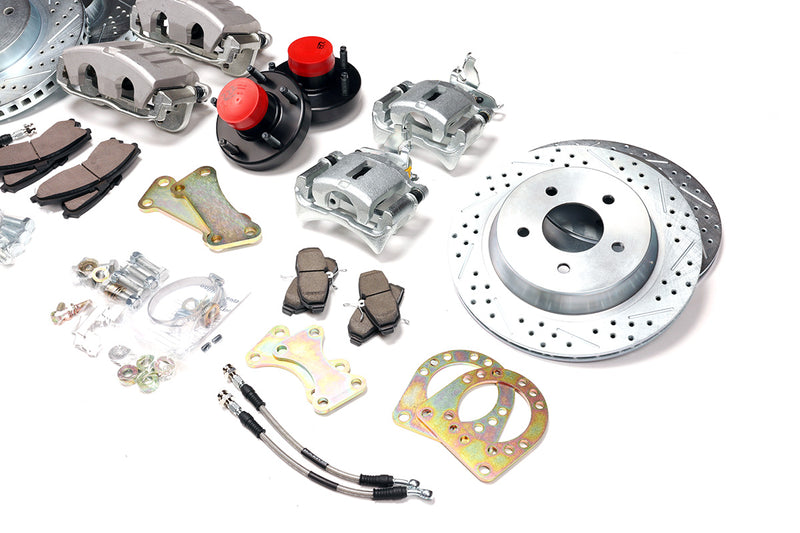

REAR KIT: This new brake kit will work with 88-98 rear ends, and does NOT require machining to the axle or rotors, because we use a true truck rotor. This caliper has an integrated parking brake, but will function without it hooked up.
Notes: Must measure axle housing bolt pattern and axle offset before ordering. These trucks used many rear ends through the year, and must confirm to make sure it will work with your vehicle. If you failed to measure and confirm, then the kit can be subject to a re-stock fee and will not be credited back for shipping cost or said re-stocking fee.
