800132
$469.95

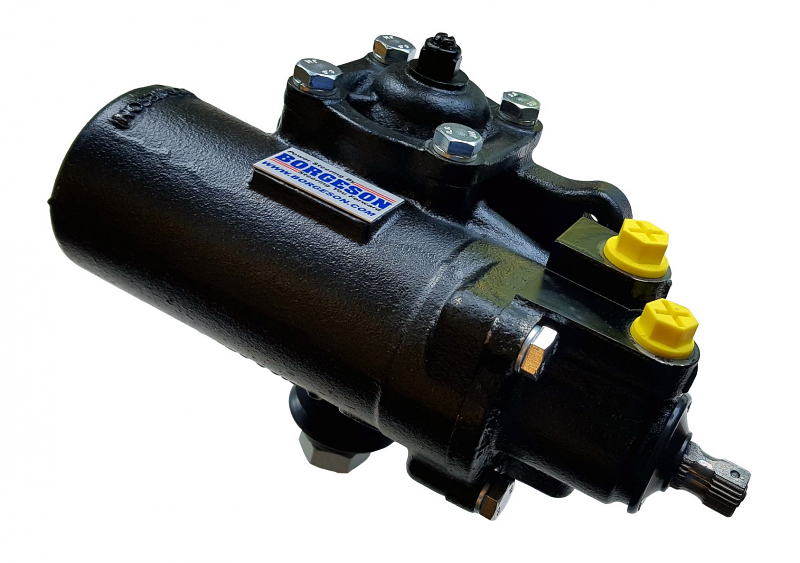

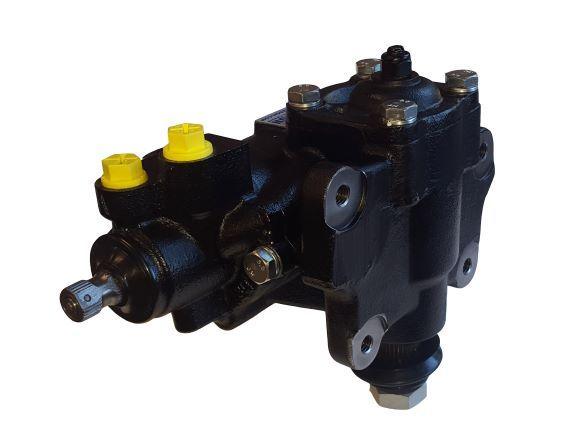

Borgeson Street & Performance Quick Ratio Chevy C10 Power Steering Box to replace the Saginaw/Delphi 800 series in 68-86 Chevy C10 trucks. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel.
The Borgeson Street & Performance power steering box will bolt directly to the stock location and fit to the original power steering pitman arms. Trucks switching from manual steering will require a power steering pitman arm. Steering box includes adapters to be able to use either O-ring or flare style hose connections. This new Borgeson steering box uses a ¾”-30 spline input shaft and all pre-1977 trucks will require a new rag joint connector #990012, available separately above.
Note: Bolts not included - use the stock 7/16-14 bolts from your original steering box.
Input Shaft: 3/4"-30 Spline
Pitman Shaft: 1-1/4" GM with 32 Splines and 4 Master Splines
Pressure Port: M18 X 1.5 O-Ring or 11/16"-18 Flare, if using included flare inserts
Return Port: M16 X 1.5 O-Ring or 5/8"-18 Flare, if using included flare inserts
Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
Do yourself a favor and just buy the pitman arm when you buy this.
The best upgrade for your truck is the quick steer gear box. Improves steering and makes it more enjoyable to drive.
Haven’t used yet,but very good quality!
I went from original-ish power steering box on a 68 c10 to this. Holly Molly what a difference. Swapped to hydro boost w/ new steering pump and added a cooler. My god what a difference. Tracks straight no jogging the wheel to stay in lane. 1.5 turns either way from straight to lock. 3 total lock to lock instead of the stock 72 turns lock to lock. So worth it. Stop procrastinating and get it.
