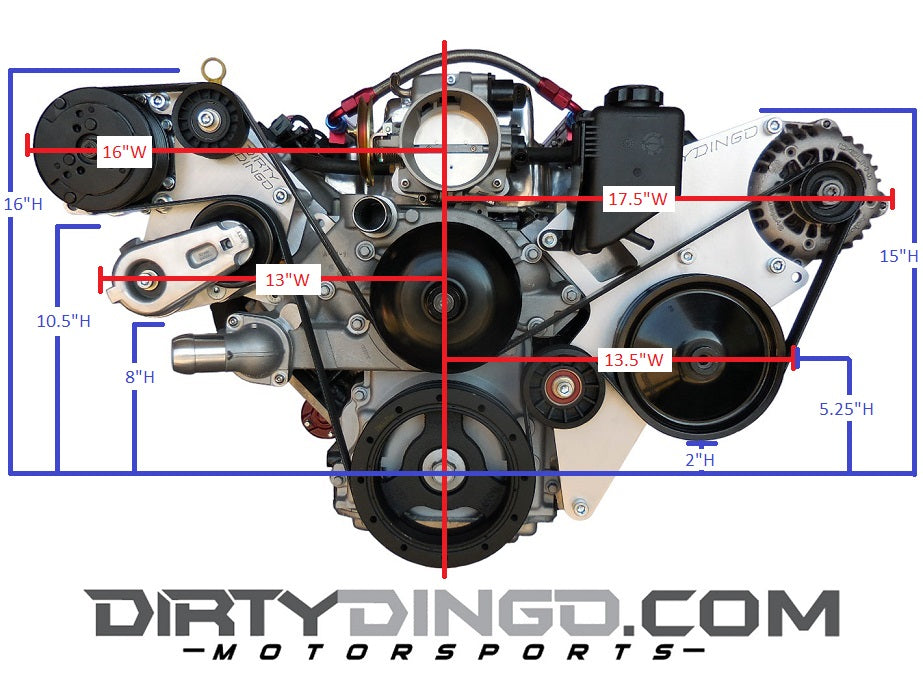

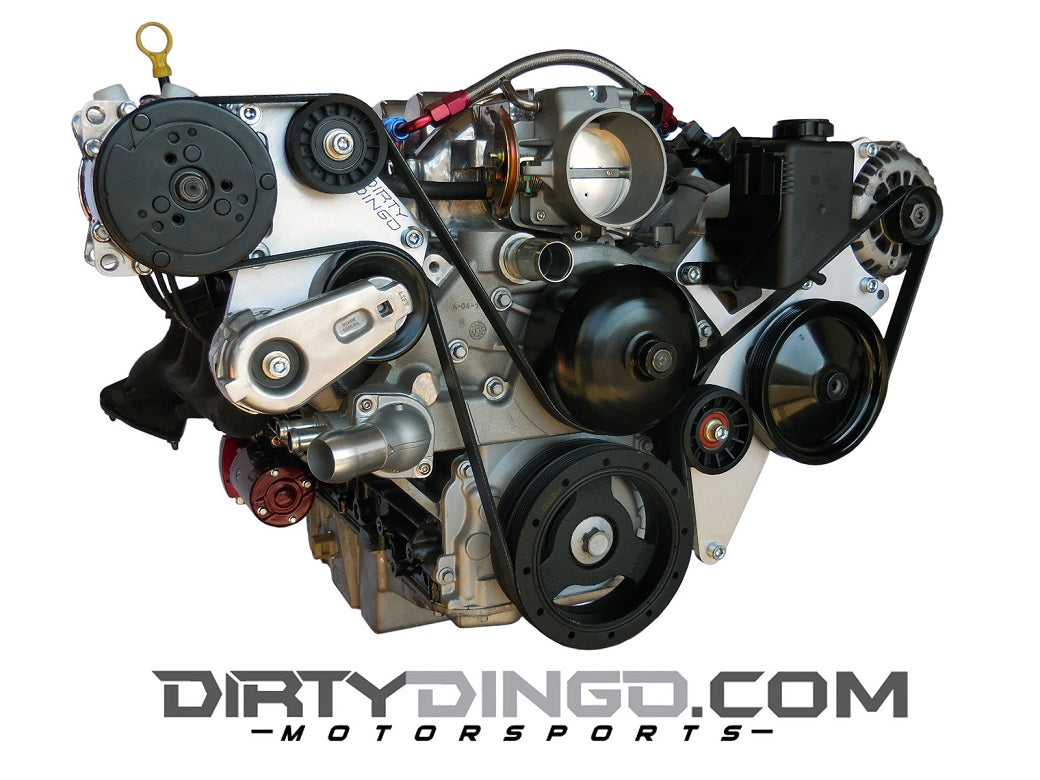

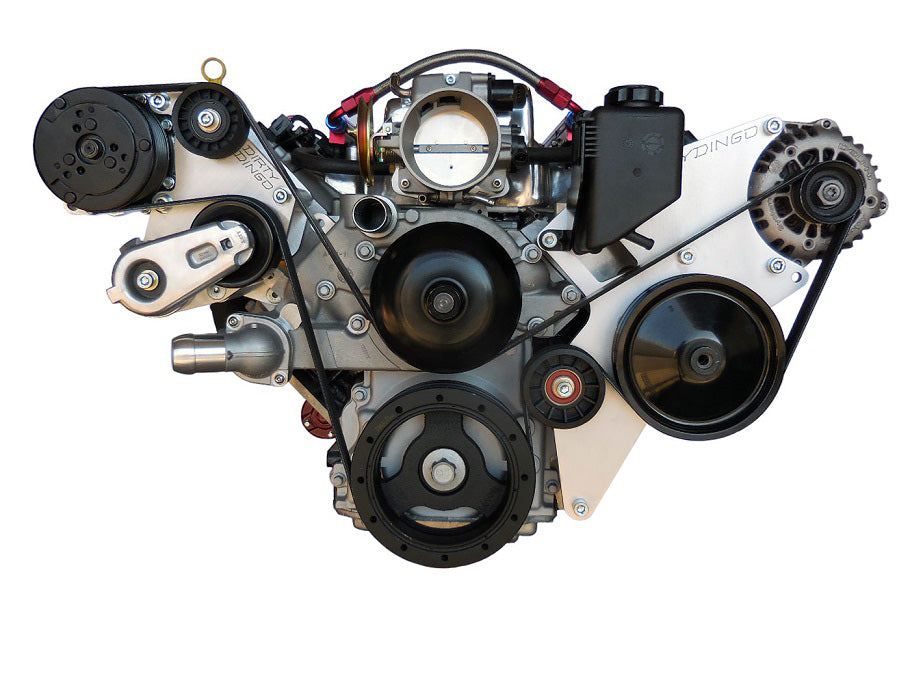

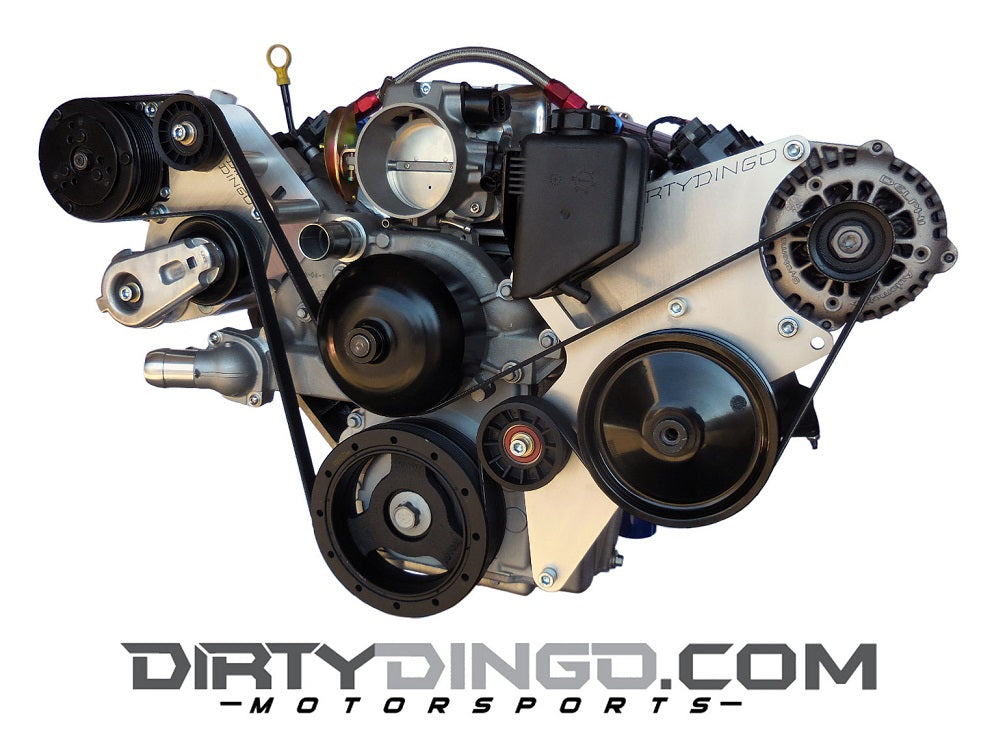

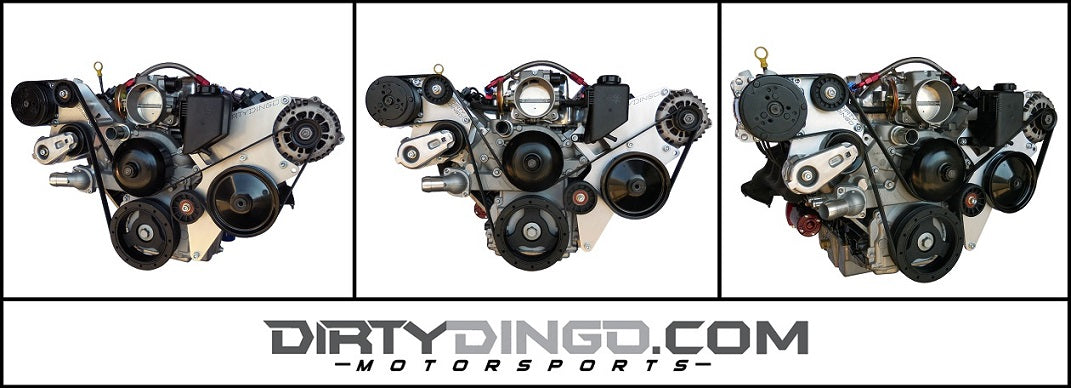

This combo kit is designed to be used with type 2 power steering pumps with a Corvette remote power steering reservoir, set up similar to the 1997-2004 Corvette accessories. This kit will fit Vortec Truck and 2010-up Camaro accessories. This bracket is designed to fit large or small case alternators. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center, completely CNC machined on both sides to 3/8 thickness. A/C kits come with Gates monster spring loaded tensioner and Gates idler pulley. Will fit with stock, tall, or tall sheet metal fabricated valve covers. Alternator/Power steering bracket kit comes with lower idler pulley kit. Grade 8 zinc coated allen bolts. Spacers are CNC lathe cut from 6061-T6 billet aluminum.
Dirty Dingo billet aluminum air conditioning bracket for mounting the Sanden type SD7H15 4711, 4665, and 6669 508 A/C compressors on the passenger side on an 1997-2013 LS engines. Machined from 3/8 thick 6061-T6 aircraft billet aluminum. Comes complete with all 6061-T6 billet aluminum CNC lathe cut spacers, stainless washers and grade 8 zinc coated allen bolts. Includes new monster spring loaded belt tensioner. No more slipping belts with using the stock or cheap spring loaded tensioners. Places the A/C compressor in line with the factory serpentine belt drive system.
* A/C compressor and belt not included.
* Water pump spacers are not included in this kit.
* Does not clear factory EGR valve mounted to passenger cylinder head, must be reloacted.
* Designed to fit LS alternators from- 1998-2002 Camaro, Firebird, 2004-06 GTO, 2000-2013 LS Vortec Truck large and small case, and 2010-15 Camaro Alternators.
Saginaw (TC) Type II Part # AC Delco 36-0011
Pulley GM Part # 12559885
Reservoir GM Part # 26046502
Reservoir Bracket # 12555222
Cap GM Part # 10317982
