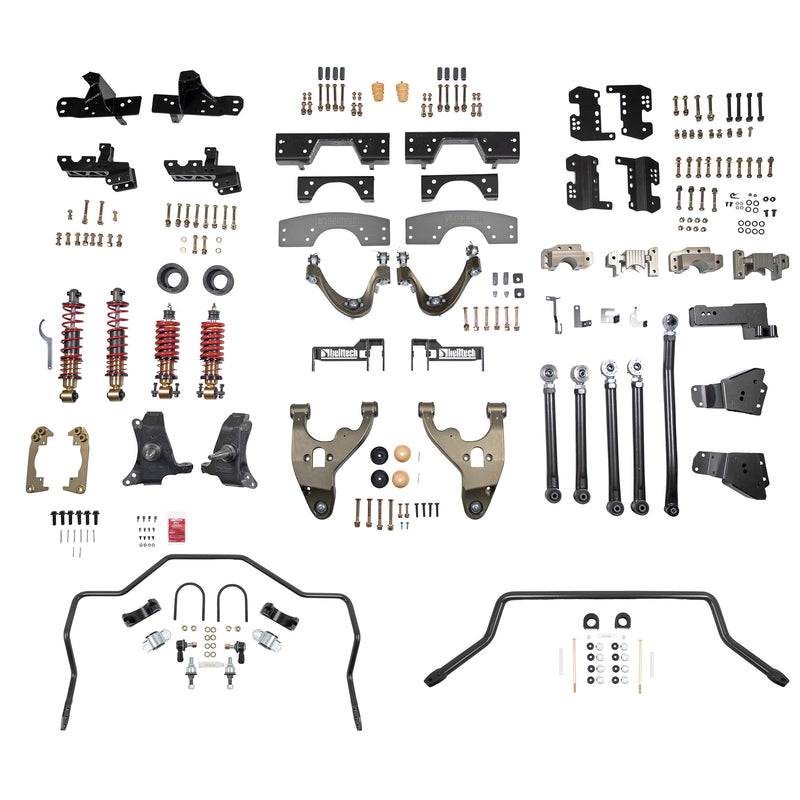

Belltech Coilover System - 88-98 C1500

⚠️ Minimum 1.25" Rotor

Belltech has been lowering the Chevy OBS since the late 1980s, and few vehicles have shaped our legacy like the 1988–1998 Chevrolet C1500. After celebrating our 40th anniversary, we set out to give this platform a modern suspension solution worthy of its reputation. The result is a complete bolt-on front and rear coilover system with a 4-link conversion kit that delivers an aggressive stance, modern handling, and exceptional ride quality. Whether it’s a track day, cruising the street, or daily driving, this system provides the comfort, control, and adjustability enthusiast’s demand.

Front Features

• 3” Drop Spindle
• Built from robust ductile iron
• Retains factory track width
• Works with OEM brake components (requires 1.25" rotor)
• Designed to clear 18" or larger wheels


• Forged Aluminum Upper Control Arm + Mounting Bracket
• Built-in +4° caster for improved alignment and handling
• Raised pivot point optimizes anti-dive geometry
• Compatible with OEM and Moog ball joints


• Forged Aluminum Lower Control Arm + Matched Coilover Assembly
• Matched coilover and lower control arm for optimized performance
• Integrated microcellular foam bump stops for refined compression control


• Height-Adjustable Coilovers
• 2” (50mm) of fine-tuned adjustability; set ride height from -1” to -3”
• Composite upper spring adapter ensures proper spring alignment
• Sport-enhanced 300 N/mm spring rate sharpens steering response


• 1-3/8” Solid Front Sway Bar
• Boosts front roll stiffness for flatter, more predictable cornering
• Includes high-quality mounting hardware

Rear Features

• Super C-Notch Assembly
• Expands suspension travel for a controlled, comfortable ride at lower heights
• Boxed design reinforces frame strength and rigidity
• 3/8” thick hard-anodized aluminum arch support
• Integrated foam overload bump stops


• 4-Link System
• Heavy-duty 2” x 1/4” wall tubing built to plant power to the pavement
• Adjustable axle brackets: 4”–6” ride height
• Tunable anti-squat (75%–120%) and pinion angle for tailored traction + launch
• Rebuildable, greaseable rod ends for long-term serviceability


• Adjustable Track Bar
• Maintains proper axle centering + roll stability
• Constructed from 2” x 1/4” A36 steel with low-friction, triple-wall vulcanized bushings
• Ride-height positions: 4”, 5”, 6”


• Height-Adjustable Coilovers
• 60mm (2.36”) galvanized steel housing for optimized corrosion protection
• Powder-coated high-tensile 35 N/mm spring rate sport-tuned springs
• Progressive-rate polymer foam bump stops provide smooth limit control
• Spherical lower mounts for smooth articulation


• 3/4” Solid Rear Sway Bar
• Three adjustment positions for customizable handling
• Finished with durable powder coat
• includes Class 10.9 hardware

This all-new Belltech system brings the iconic OBS platform into the modern era with refined suspension geometry, broad adjustability, and real performance gains; all while preserving ride quality and bolt-on simplicity. Improved bump-steer correction and a tighter turning radius achieve the precision and control of a modern performance truck.

Installation Instructions

 Front Upper Control Arm Kit
 Drop Spindle Set
Front Lower Control Arm and Coilover Kit
4-Link Axle Kit and C-Notch
Front Anti-Sway Bar
Rear Anti-Sway Bar
