350R01

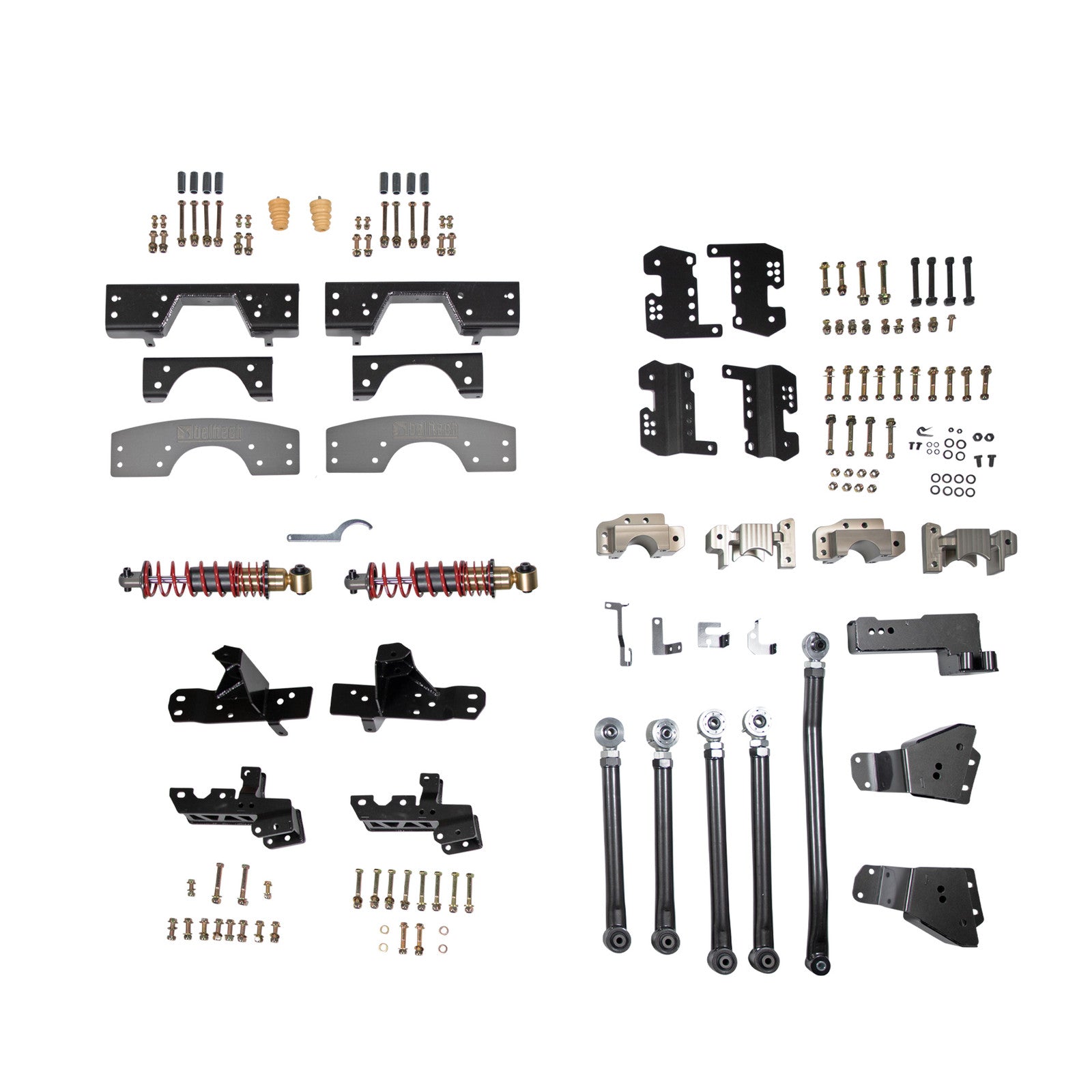

BellTech Rear 4-Link Kit w/ Coilovers & Notch - 88-98 C1500

$3,425.00

Transform your classic into a modern performance machine with Belltech’s rear suspension upgrade kit for the 1988–1998 Chevrolet C1500. This complete system includes a precision-engineered 4-link conversion with adjustable track bar, coilovers, and a super C-notch for increased suspension travel. Every component is engineered to work together, delivering improved traction, flatter cornering, a refined ride, and confident control—while maintaining the classic stance and style that makes your OBS an icon.

Rear Features

Super C-Notch Assembly

Expands suspension travel for a controlled, comfortable ride at lower heights
Boxed design reinforces frame strength and rigidity
3/8” thick hard-anodized aluminum arch support
Integrated foam overload bump stops

4-Link System

Heavy-duty 2” x 1/4” wall tubing built to plant power to the pavement
Adjustable axle brackets: 4”–6” ride height
Tunable anti-squat (75%–120%) and pinion angle for tailored traction + launch
Rebuildable, greaseable rod ends for long-term serviceability

Adjustable Track Bar

Maintains proper axle centering + roll stability
Constructed from 2” x 1/4” A36 steel with low-friction, triple-wall vulcanized bushings
Ride-height positions: 4”, 5”, 6”

Height-Adjustable Coilovers

60mm (2.36”) galvanized steel housing for optimized corrosion protection
Powder-coated high-tensile 35 N/mm spring rate sport-tuned springs
Progressive-rate polymer foam bump stops provide smooth limit control
Spherical lower mounts for smooth articulation
