Boyd Aluminum Gas Tank (EFI/Side Fill) - 63-72 C10

  • EFI Application

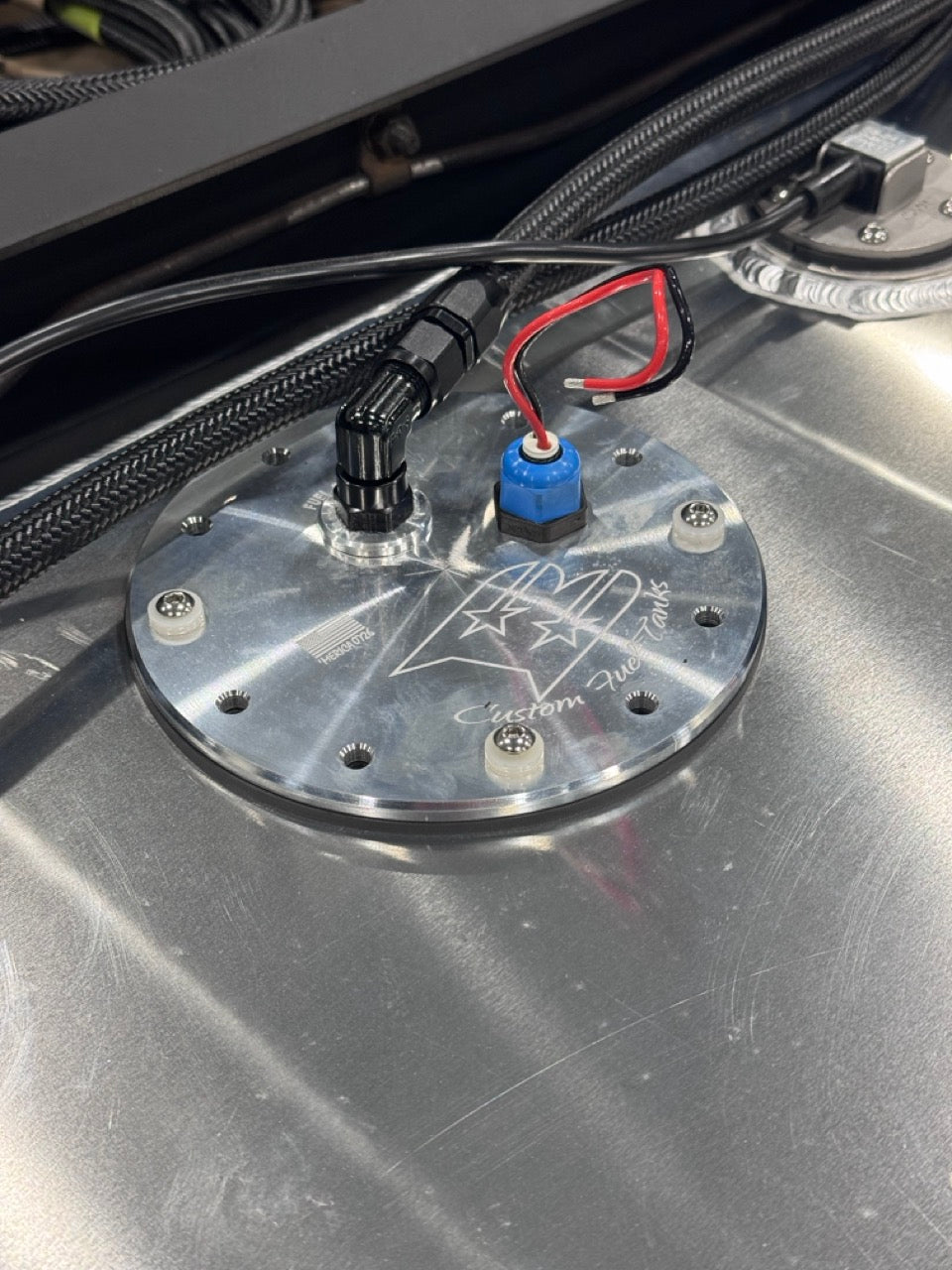

  • In Tank Aeromotive Stealth 340 Pump
  • 2" Side Filler
  • Tank Dimensions: 26.5 x 19 x 10
  • Tank Material: .125 Aluminum
  • 1/2" NPT Vent
  • 3/8" NPT Return
  • #6 ORB Draw
  • 3 Baffles
  • Approx 19 Gallons

Aeromotive 340 Stealth Pump Specifications

It would be reasonable to rate the 340 Stealth to 700 flywheel HP EFI forced induction, 900 flywheel HP EFI naturally aspirated, on gasoline fuel.

Note:

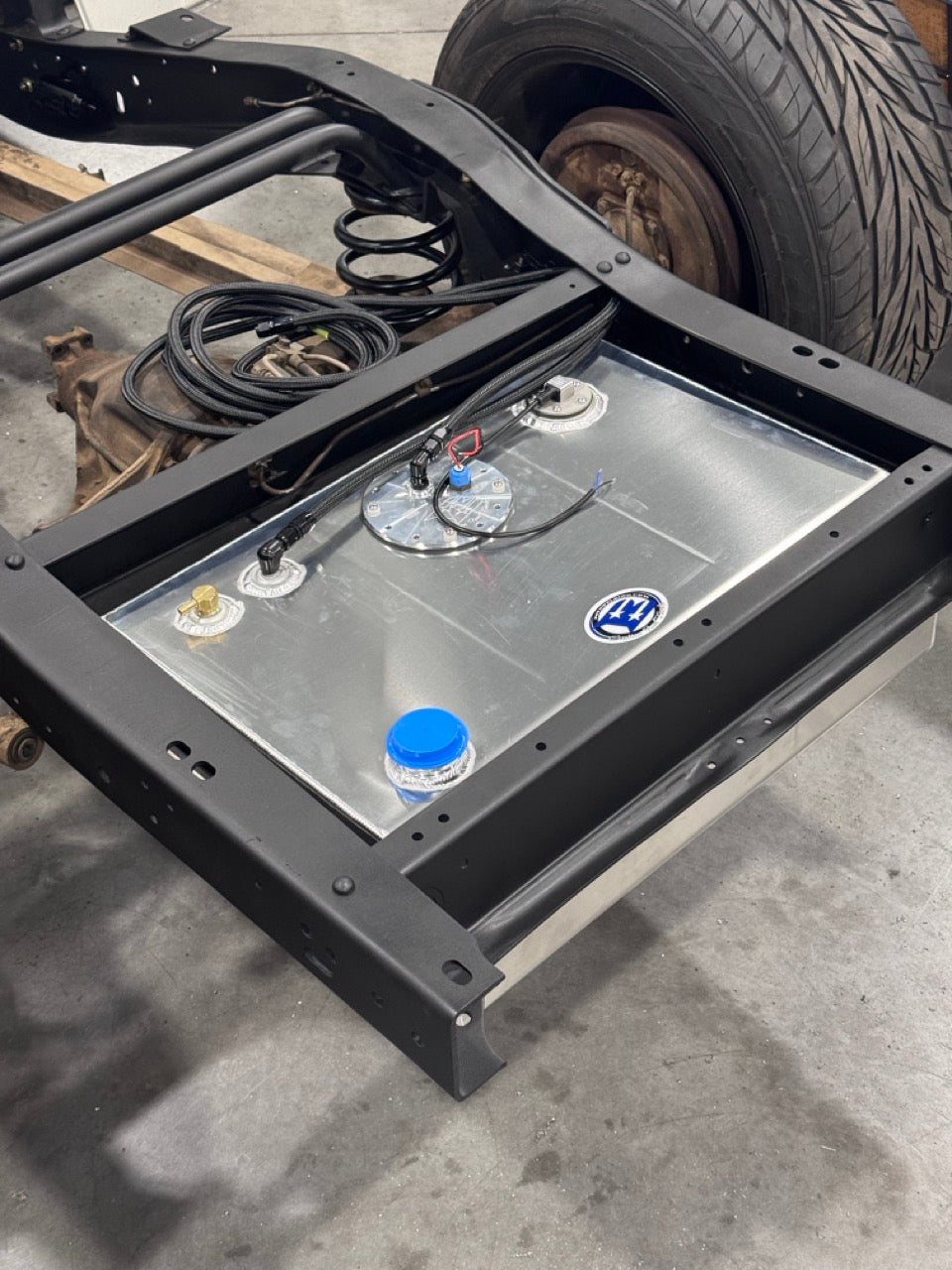

Will require modifications to mounting tabs to fit w/ Porterbuilt bolt-in step notch. Will have to make some sort of mounting bracket to sit on top of PB notch.
