DD-LS1-ALT-PS-XX
$274.99

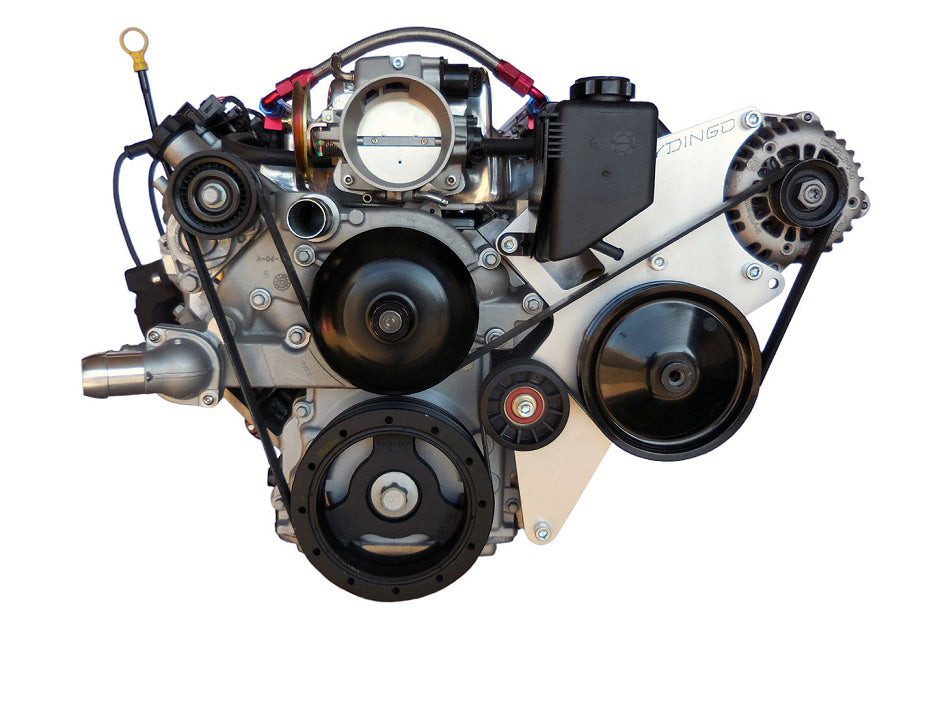

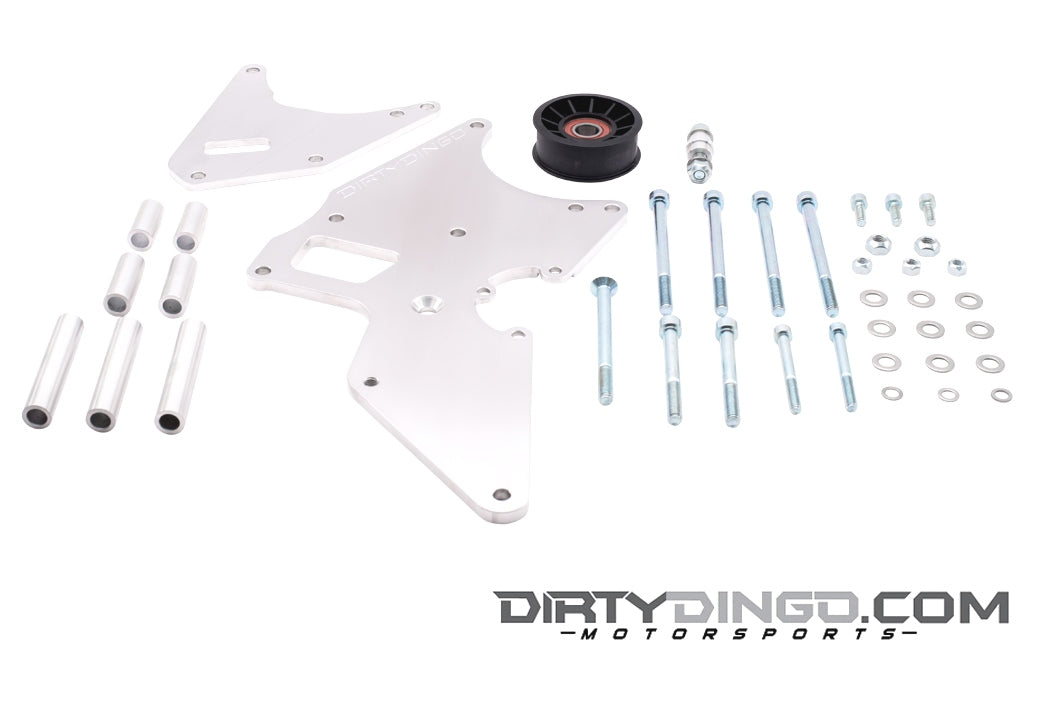

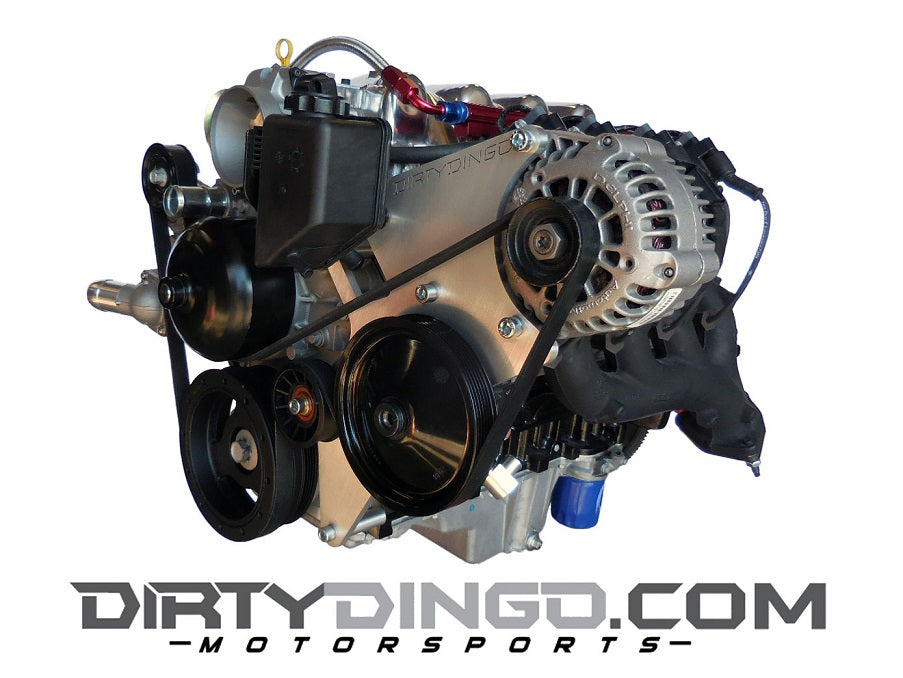

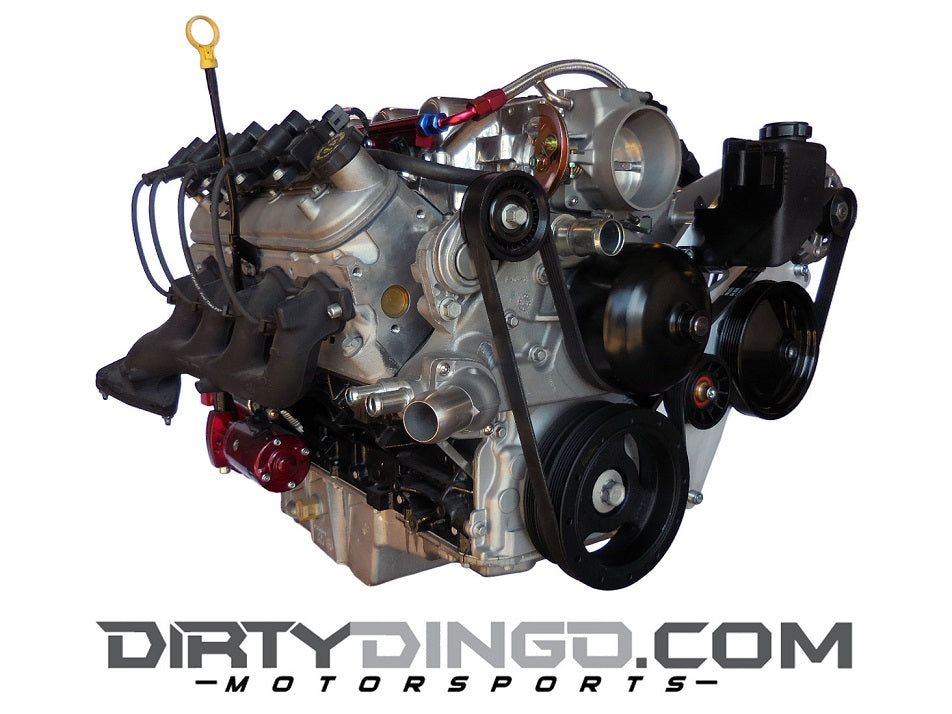

Dirty Dingo design billet aluminum alternator-power steering bracket for 1997-2015 LS Gen 3 and Gen 4 engines. CNC machined from 1/2" thick 6061-T6 aircraft billet aluminum on a precision vertical CNC milling center. This bracket is completely CNC machined on both sides. Uses TYPE II powers steering pump used on 1998-02 LS1 Camaro accessories. Must use matching pulley (1998-02 Camaro 5.7 LS1) for the pump. Designed to be used with external reservoir for the power steering fluid, such as a 1997-2004 C5 Corvette. This kit will fit using Vortec Truck (4.8, 5.3, 6.0, 6.2) accessory spacing. This will also fit tall deck LS engines. Grade 8 zinc coated allen bolts, precision 6061-T6 billet CNC lathe cut spacers, and stainless steel washers. Additional idler pulley kit included.
* Designed to fit LS alternators from- 1998-2002 Camaro, Firebird, GTO, 2000-2013 LS Vortec Truck large and small case, and 2010-15 Camaro Alternators.
* Designed to be used with 1998-02 Camaro Power steering pump and pulley.
* Will not fit GTO Power steering pumps.
* Will need 1997-2004 Corvette Reservoir, Reservoir Bracket , and Reservoir cap.
