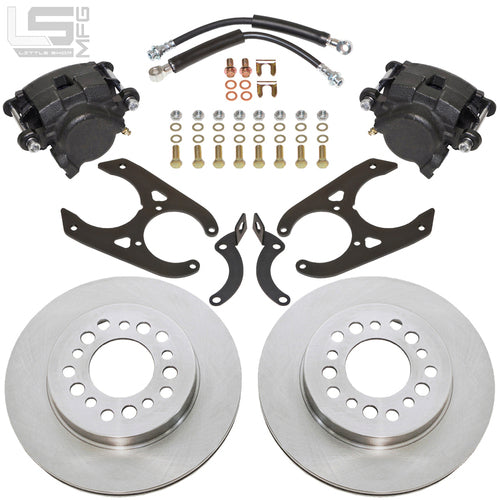

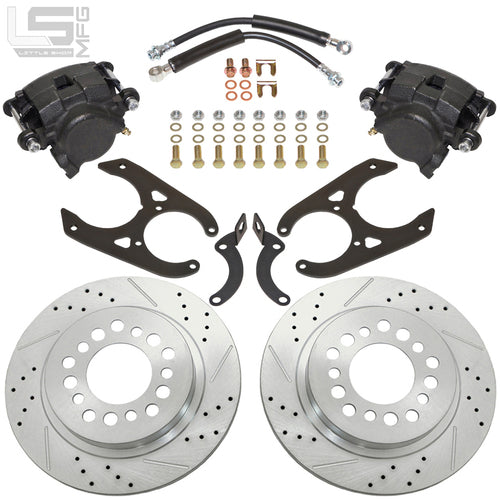

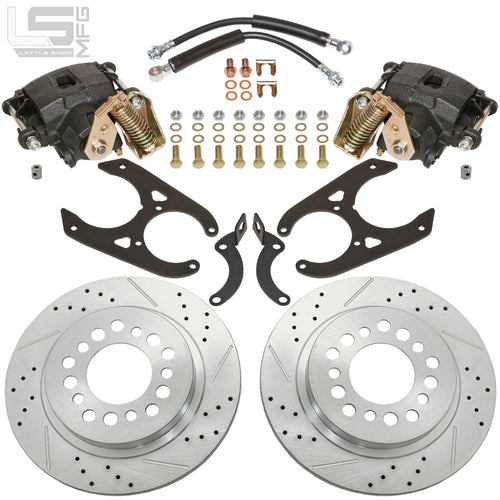

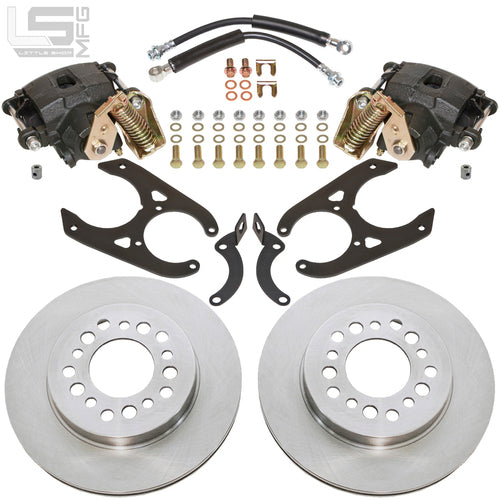

Finally, a rear disc brake conversion that doesn't break the bank. Installation is simple, requires no welding, and it's not necessary to pull out the axle shafts. All serviceable parts are also available individually. This kit is compatible with GM 1988-1999 pickups and 1992-2000 SUV's with heavy duty 6 lug rear ends (11" drum axles).

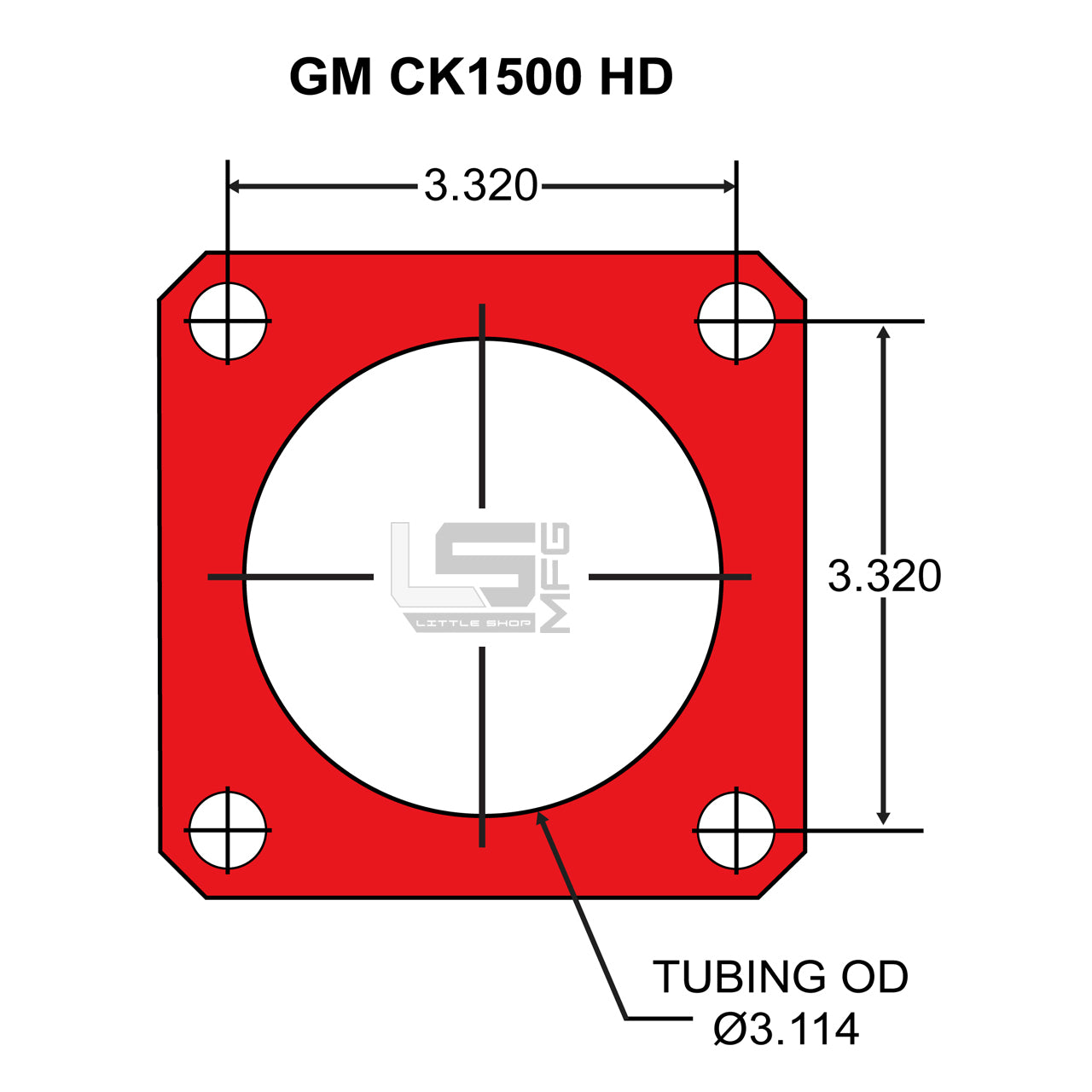

Verify your flange dimensions and offset with the images below. This can be done without removing anything simply by measuring the flange at the back side of the drum.
CK1500 11" drum axles typically have a 3.6" offset, but in some cases have a 5.5" offset which will require machined spacers. Offset is measured from the axle housing flange to the axle shaft face (without brakes) as shown below
92-00 Chevrolet C1500 Suburban
92-00 GMC C1500 Suburban
95-00 Chevrolet Tahoe
95-00 GMC Yukon, Denali, XL 1500
97-99 Chevrolet Cargo Van
96-04 Chevrolet/GMC Express 1500
Even if it is listed above, if it is not the 11" drum size or does not have the correct flange measurements then the kit will not fit.
Will fit inside many *but not all* 15 inch wheels. Typically if the caliper contacts inside of the wheel, clearance can be gained by light sanding of caliper contact points. nstructions: Click Here
