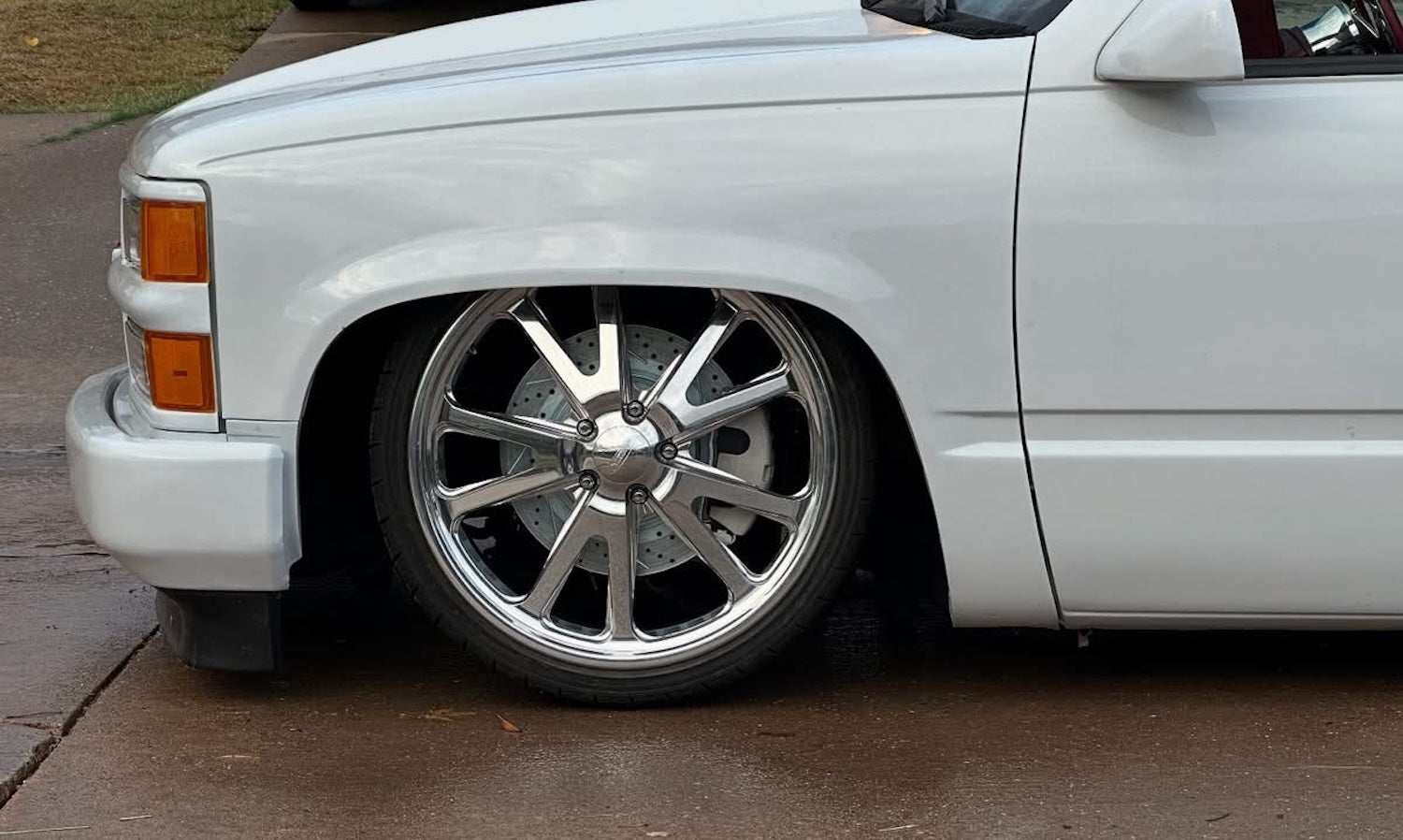

This brake kit will work with any HD-brake spindle, such as BellTech, Street Edge, McGaughys, and even stock! With easy installation, this kit will drastically improve braking compared to factory brakes; we saw a 160 ft. improvement 90-0mph and 53 ft. improvement 60-0mph. Works only on HD rotor spindles which need to be modified to install the kit. Add 2" drop React Suspension spindles (above) for a true bolt-on installation.
Note: This kit has minimal caliper, see templates below for details.Spindle not included.
Requires user modification on stock or stock style spindle with caliper "ears". No modifications needed on spindle when adding React Suspension's modular 2" drop spindle.
Hub uses 14x1.5mm studs.
Must have HD 1.25" spindle; will NOT work on light duty 1.00" brake spindle.
Widens track width by 5/16" per side (except when using with React spindle)
1) No need to buy new spindles, just modify current spindles
2) Uses new calipers, not rebuilt
3) Precision machined hub
4) Laser cut mounting bracket
5) Diameter of wheel required, depends on rotor size selected.
6) Will work with most aftermarket wheels, since caliper offset is kept to a minimum.
- C5 Caliper - New (Not Rebuilt)
- 13"-15" Rotor, Drilled / Slotted / Zinc Plated with Directional Vanes (1.1" Thick)
- OPTIONAL 13" rotor is 2-piece and will include BellTech spindle
- Machined Aluminum Hub w/ ABS Ring
- 5x5 Bolt Pattern
- Caliper Mounting Bracket
- All Necessary Hardware
- Brake Pads
- DOT Stainless Steel Hose kit
