Pro Performance LSX Aluminum Radiator ONLY (40" width) - 88-98 GM Truck / 92-99 SUV
PRO1520-1
Pro Performance LSX Aluminum Radiator ONLY (40" width) - 88-98 GM Truck / 92-99 SUV
$499.00

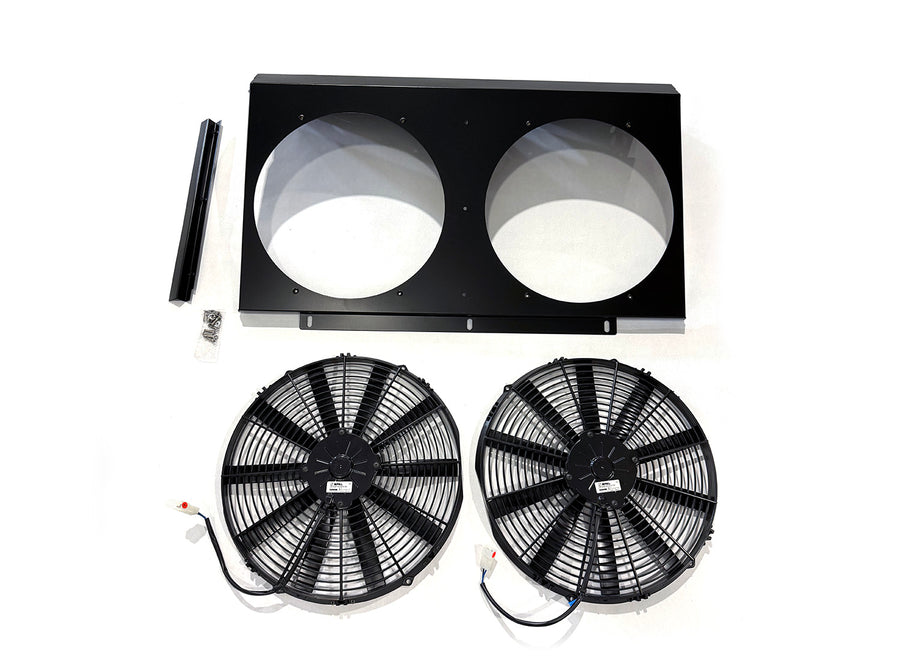

These aluminum LSX radiators are a 3-row and are great for LS swaps. They were designed from the start for LS-powered 1988-98 C1500 trucks, and include features such as passenger-side inlet, internal transmission cooler and a steam port in the passenger-side tank. Want to add two SPAL fans and a custom-fit black fan shroud? Check out the rad/fan/shroud combo here!
Aluminum Construction
Powdercoated Black Radiator
Uses Existing Hardware to Bolt to the Truck
Overall Dimension: 20.375" H x 40.625" W
Passenger Side Inlet - Passenger Side Outlet
Trans Cooler Fittings: 1/2-20 Straight Thread
1.25" Hose In - 1.50" Hose Out
Only fits trucks with 40" wide radiator / mounts (also labeled as 34" core). Shown with Standard Radiator Cap
Must have flat upper radiator mounts, NOT raised for tall radiator (See image)
